Protection Screen

Protection screen is an innovative safety device attached to structures (floors, beams, or walls and lifted using a tower crane or hydraulic system. Specifically designed to fulfill peripheral protection needs for high-rise and super-high-rise buildings.

There are obvious differences between the facade walls of commercial and residential buildings. Residential buildings typically have many facades, demanding protection screens for exterior work, while commercial buildings fewer facades permit work from internal edges.

Therefore, GETO protection screens are categorized into residential protection screens with more platform layers, and commercial building protection screens with fewer platform layers.

Formwork Systems







140x140

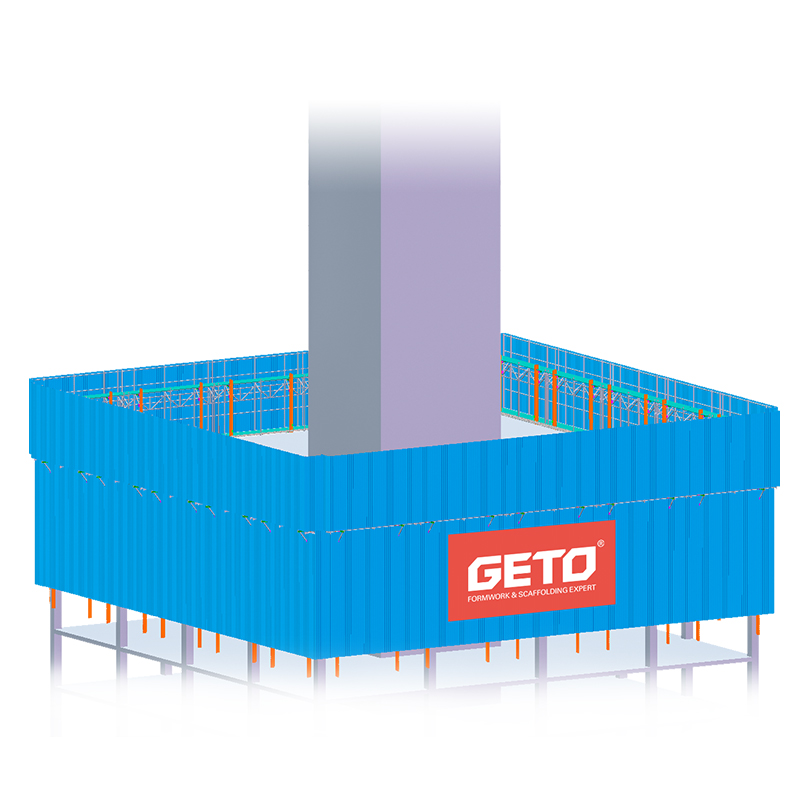

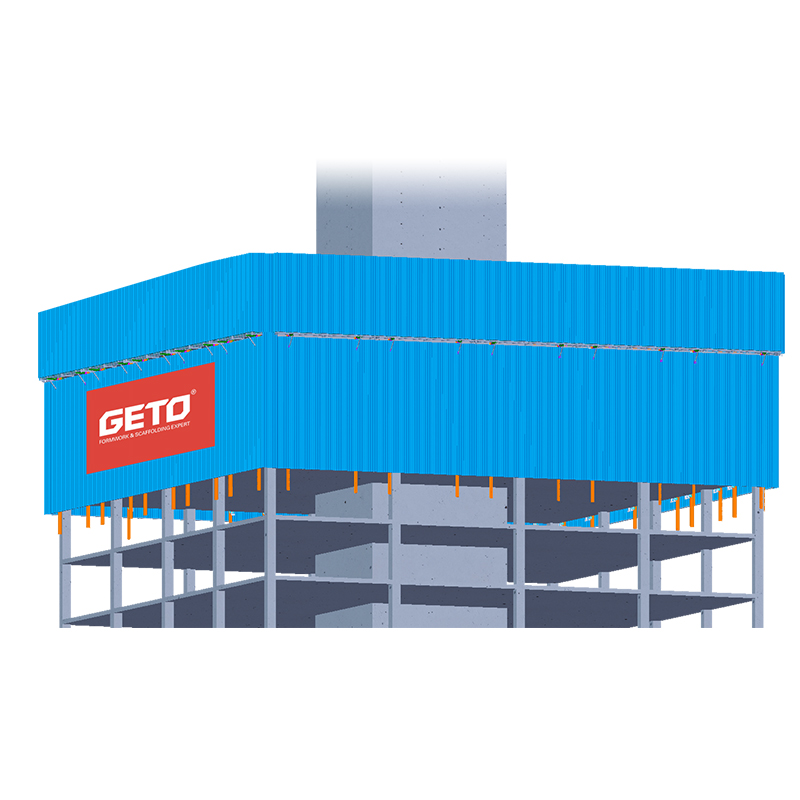

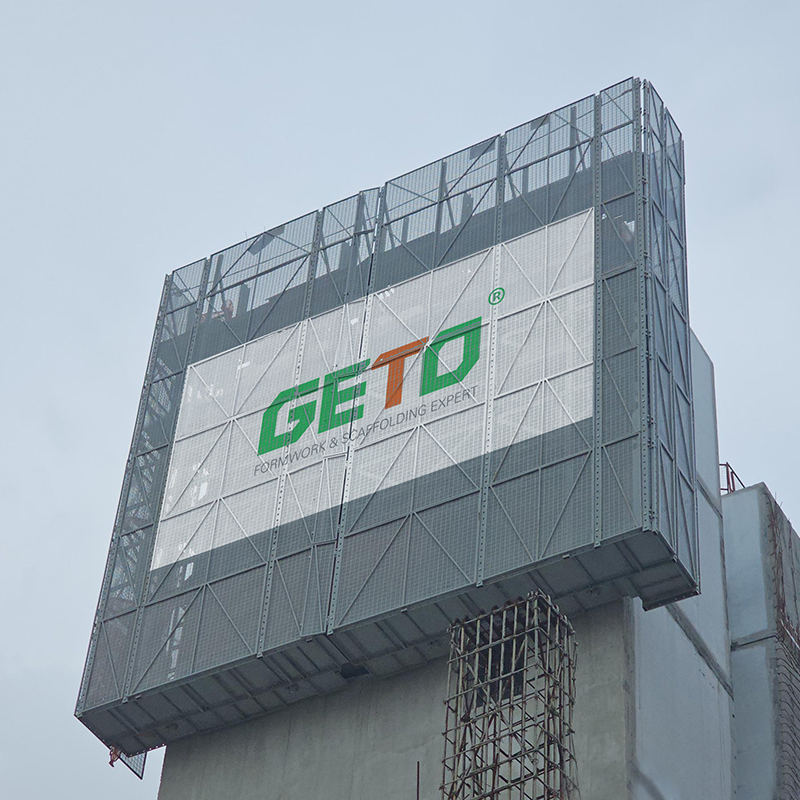

Protection Screen for Commercial Building

140x140

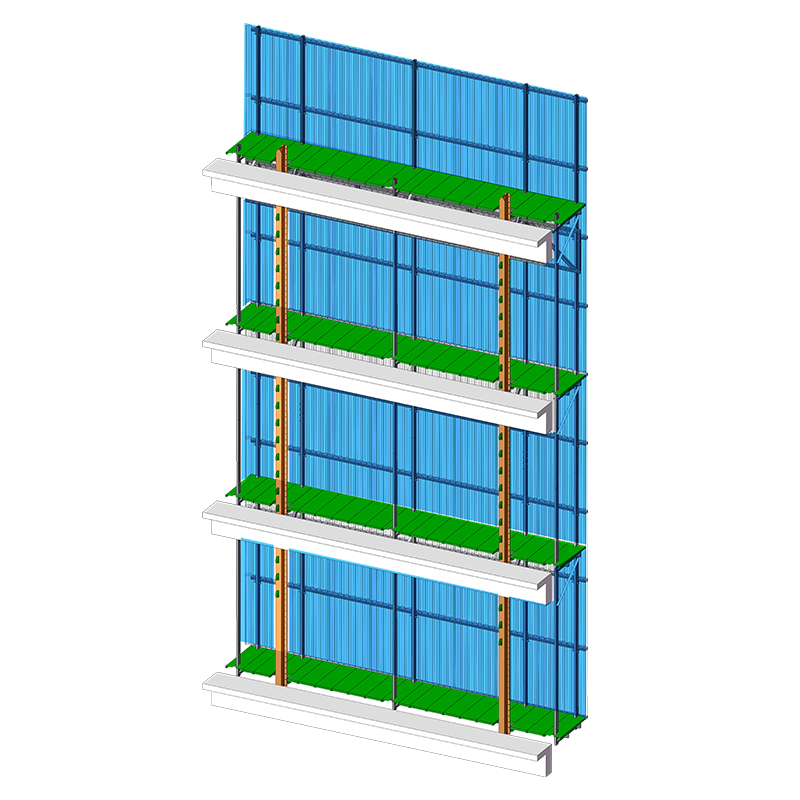

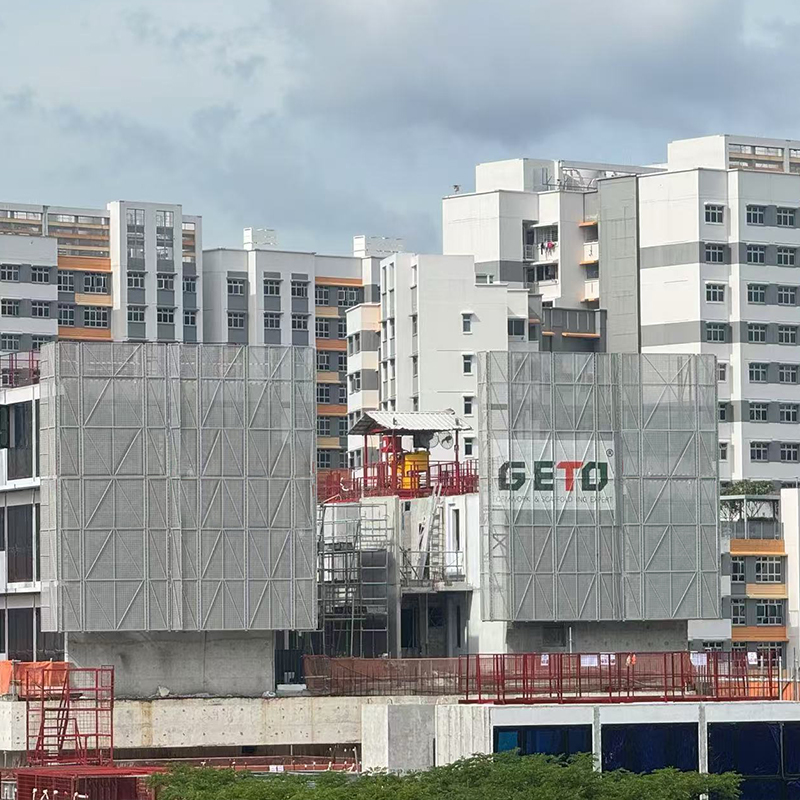

Protection Screen for Residential Building



Advantages



1. High safety

(1) High wind resistance

Capable of withstanding a maximum wind load of 9 levels without extra reinforcement. Additional reinforcement is needed for wind loads beyond level 9.

(2)Fall arrest

Fall arrest devices attached during climbing are independent, minimizing safety issues resulting from operational errors.

Protection against personnel and items being dropped is ensured by full sealing, including guide rails, corners, and protruding parts.

All components undergo rigorous testing, including extreme loads and falls, to ensure safety in extreme conditions.



2. Higher productivity and cost efficient

(1) Strong universality of components for easy management: Main components do not exceed 10 types, achieving a universal compatibility rate of 95%6 or higher.

(2) Hydraulic drive system: Compared to conventional protection platform using electric hoists and electronicallycontrolled, the cost is lower.

(3) Reliable, maintainable, and easy to operate.

(4) Lower overall cost: Lower costs for disassembly, transportation, and labor due to the lightweight frame compared to regular steel climbing platforms.



3. Multi-functional

(1) Suitable for diverse shapes and heights of structure. Adjustable floor supports permit useon facades with both varying and constant inclinations.

(2) Platform boards and sealed flaps can align withfloorlevels.

Components



140x140

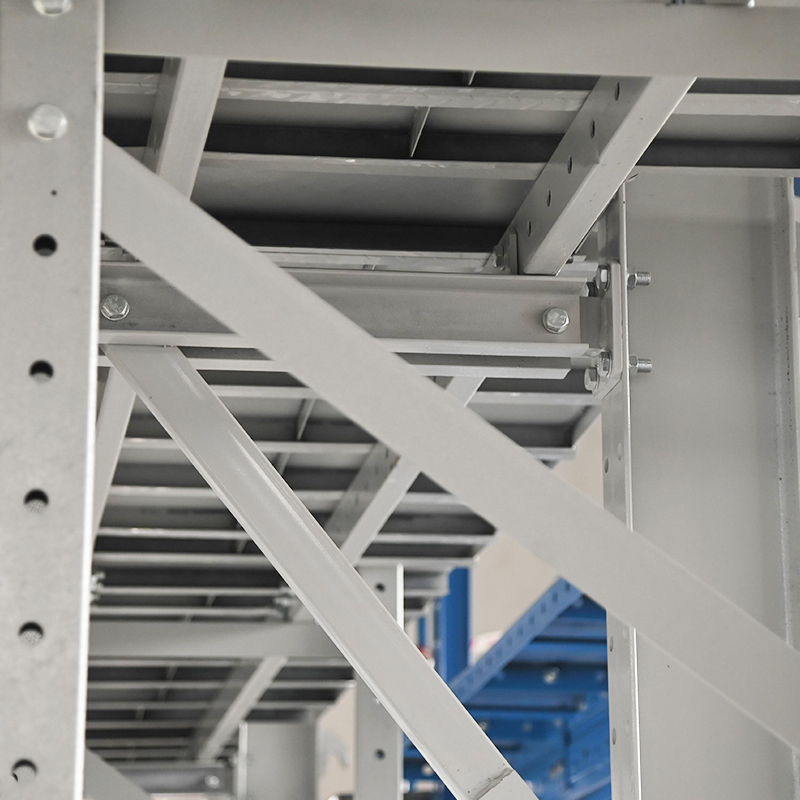

Diagonal brace

140x140

Platform board

140x140

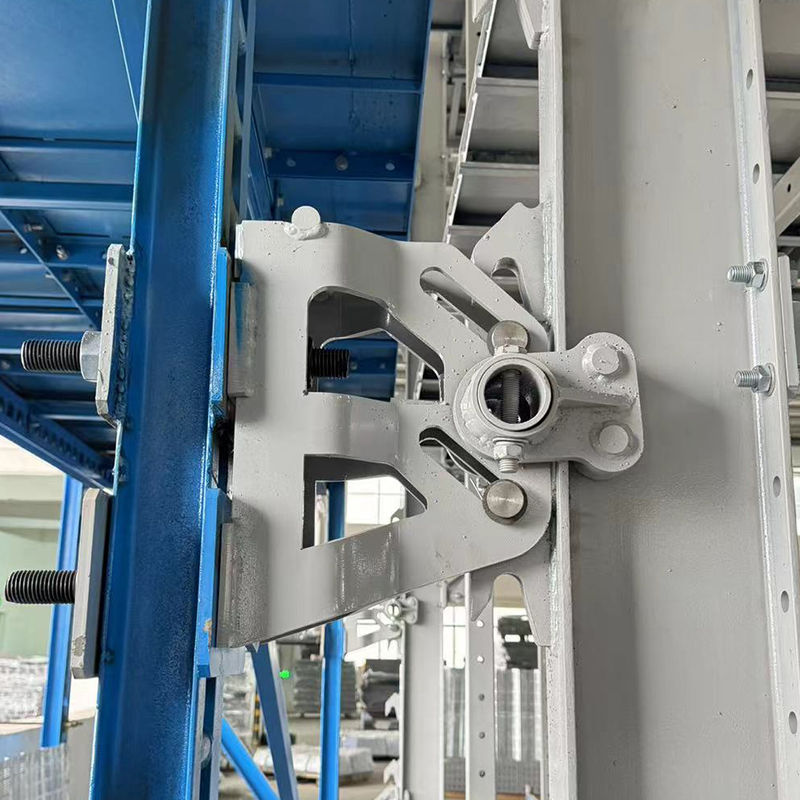

Attachment support



140x140

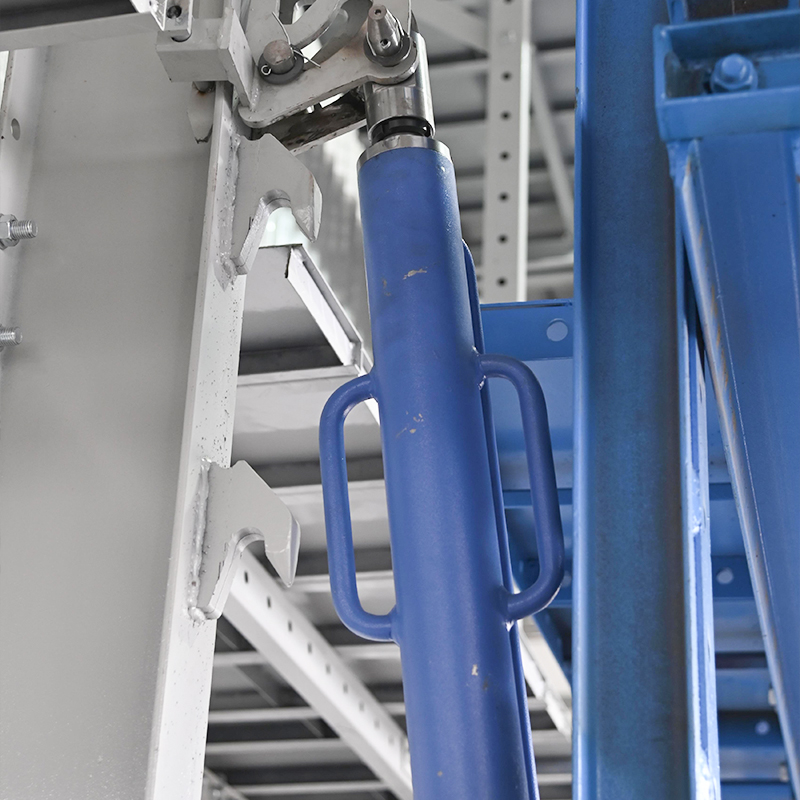

Hydraulic cylinder

140x140

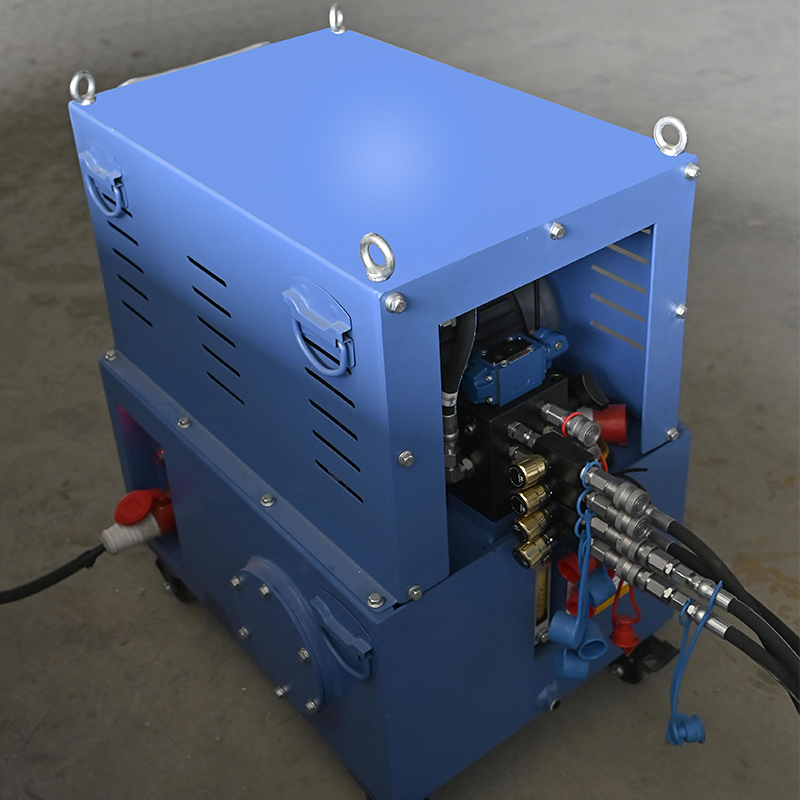

Hydraulic pump station





Sample Frame



140x140

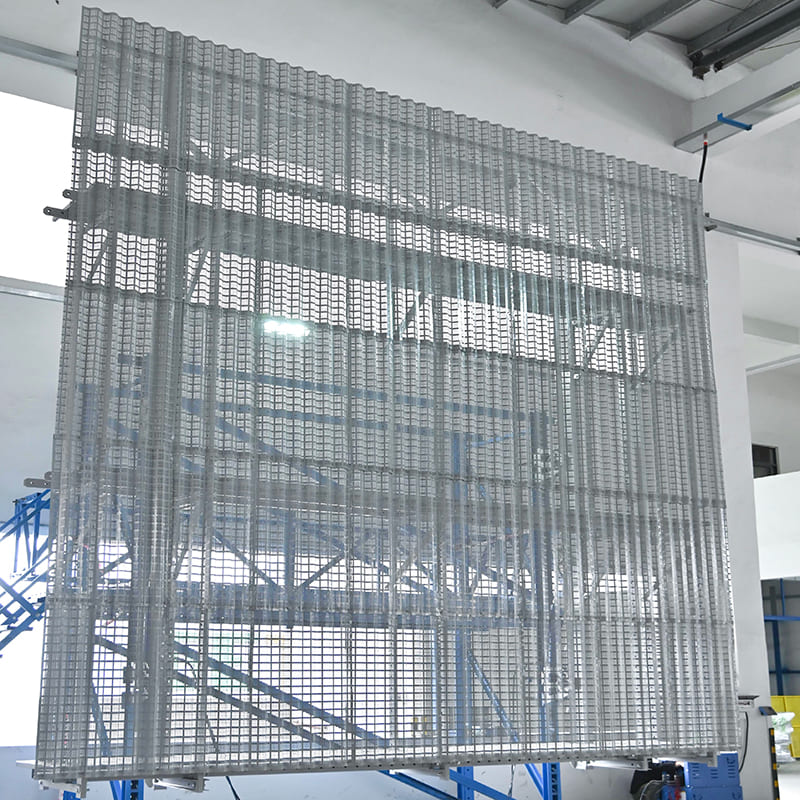

Side-front view

140x140

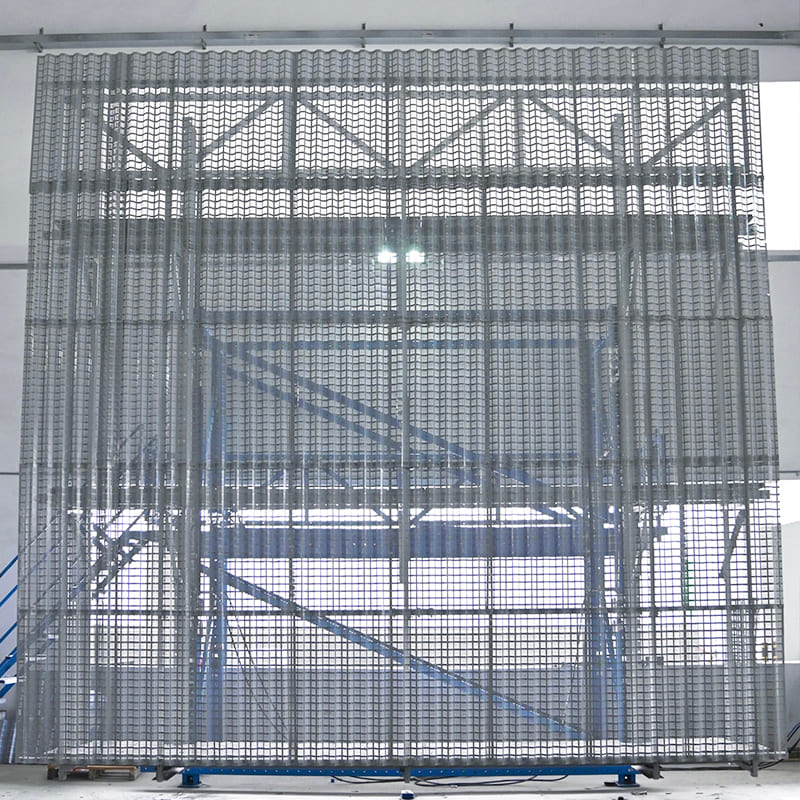

Front view

140x140

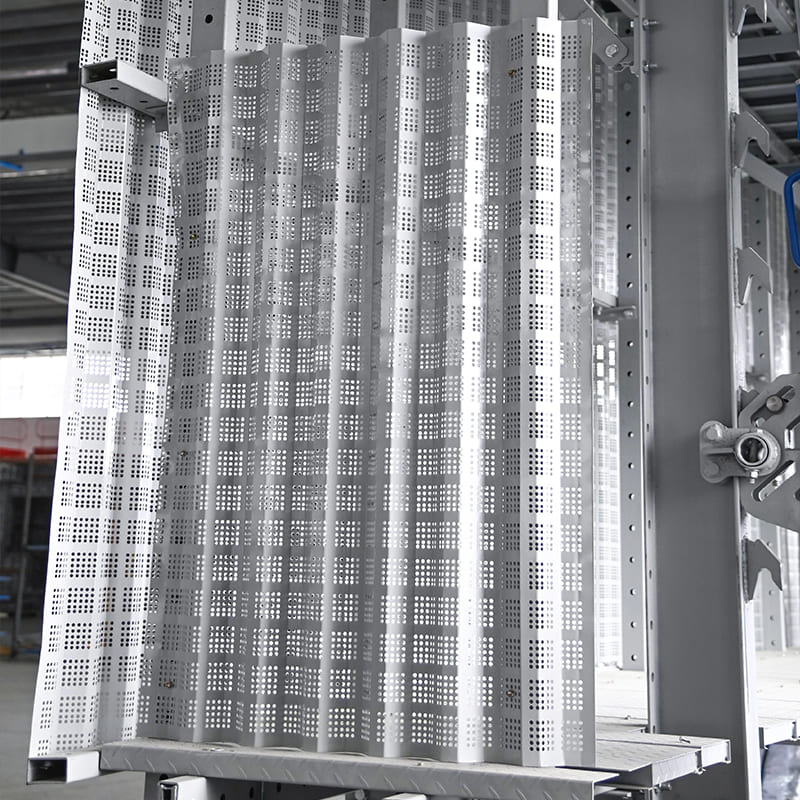

Side view

Application: Peripheral protection of various buildings including comprehensive building, condominium and office building.

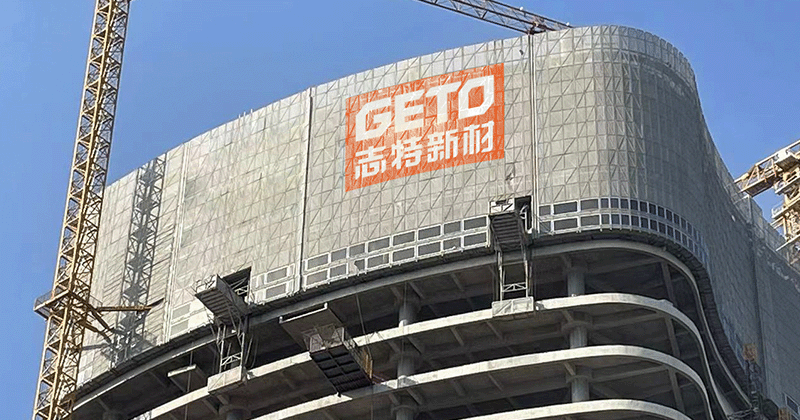

Comprehensive Building

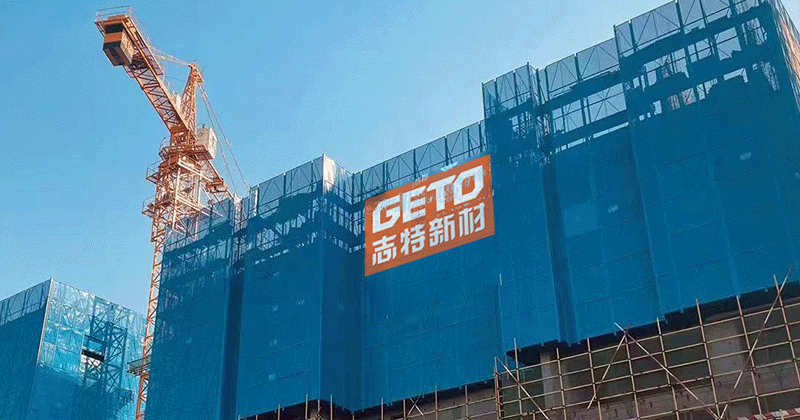

Condominium

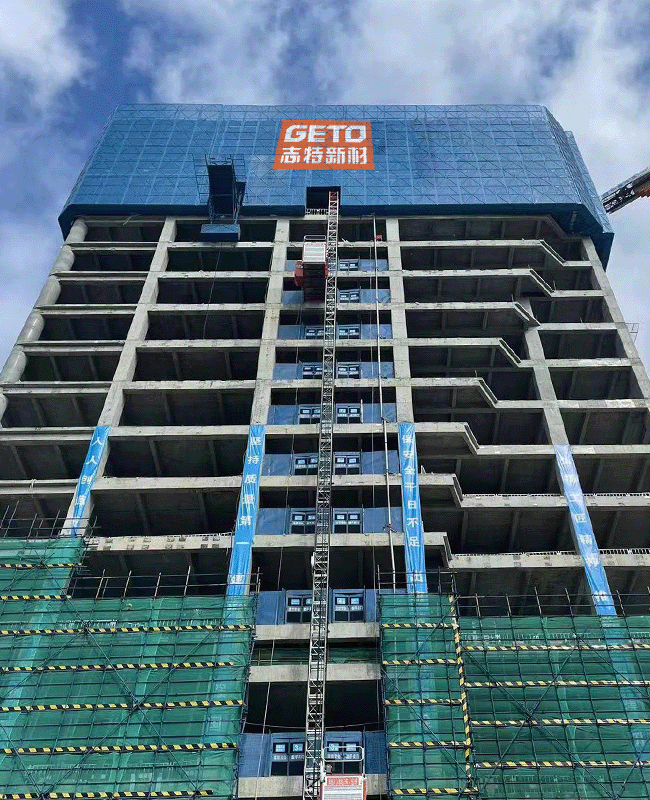

Office Building

Office Building
