Quick-Deck System

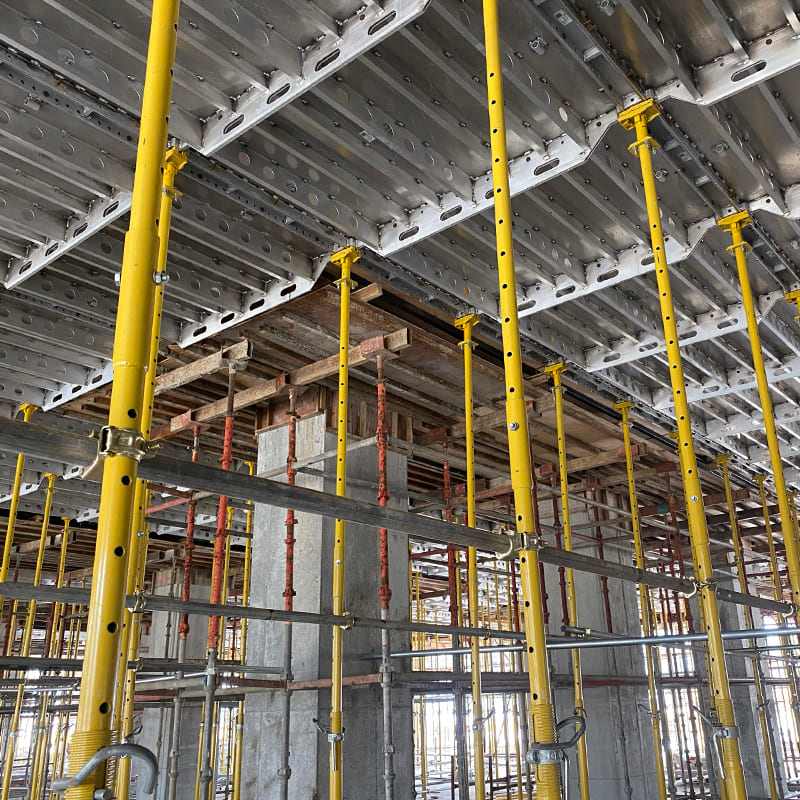

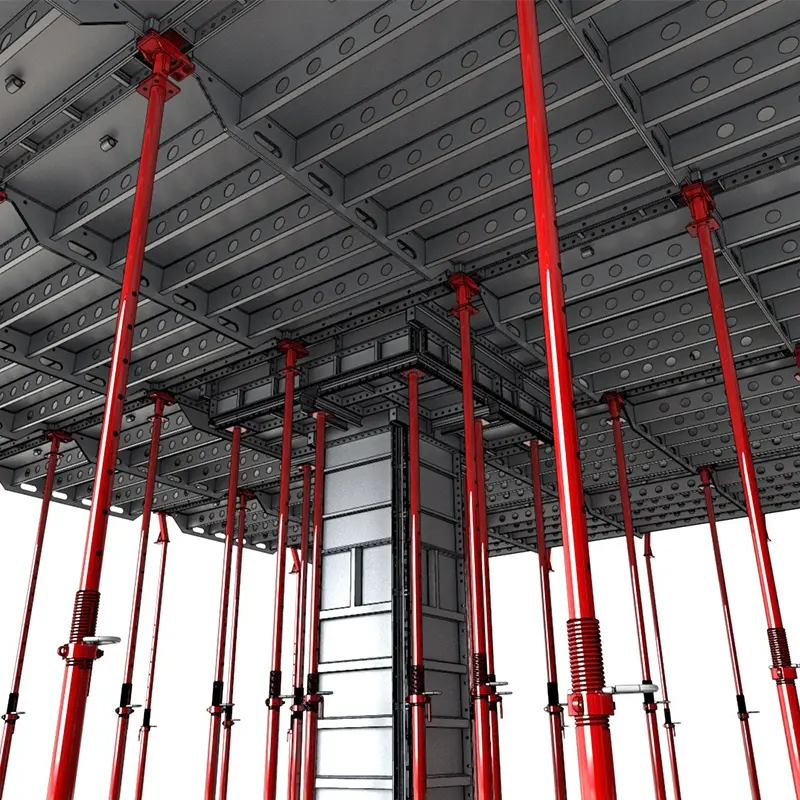

GETO Quick-Deck System is catered to construct beam-less and large-area deck structures, such as car porch and  podium. Its quick installation and dismantling characteristics are realized by adjusting the height of the adjustable props below its deck formwork. It can realize the fastening installation procedure by manually moving up the adjustable props head to hold up the formwork parts, while dismantling the formwork only requires moving down the adjustable props.

Special Application of the System



140x140

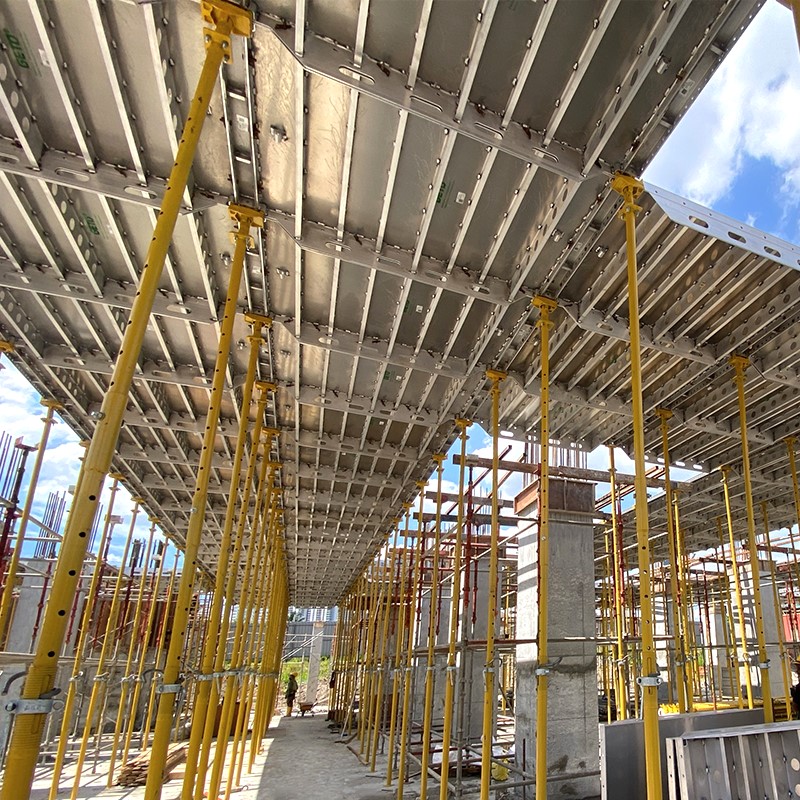

The Combination with the Existing Aluminium Formwork System

140x140

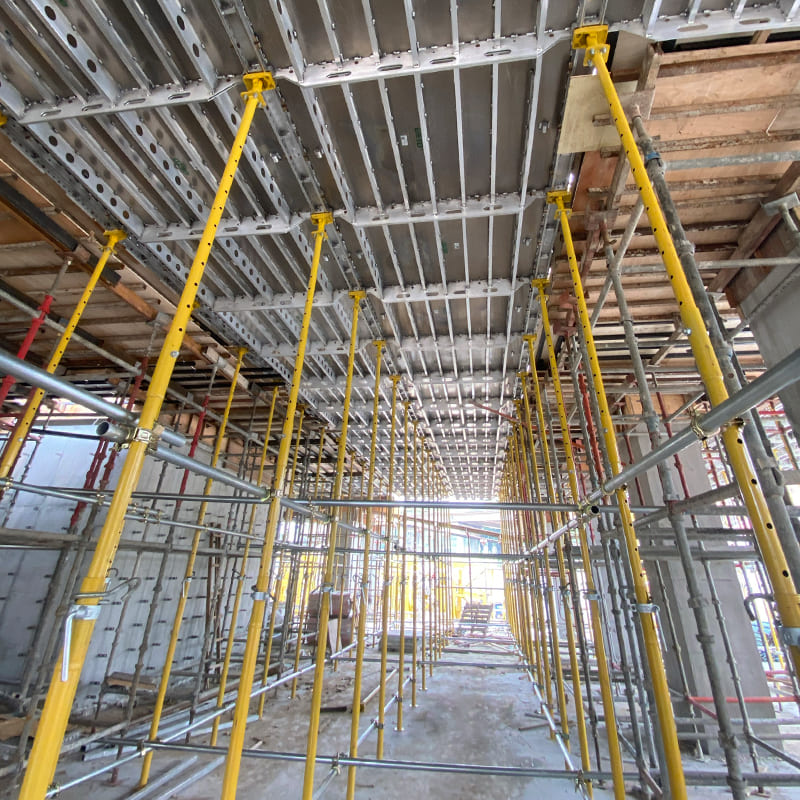

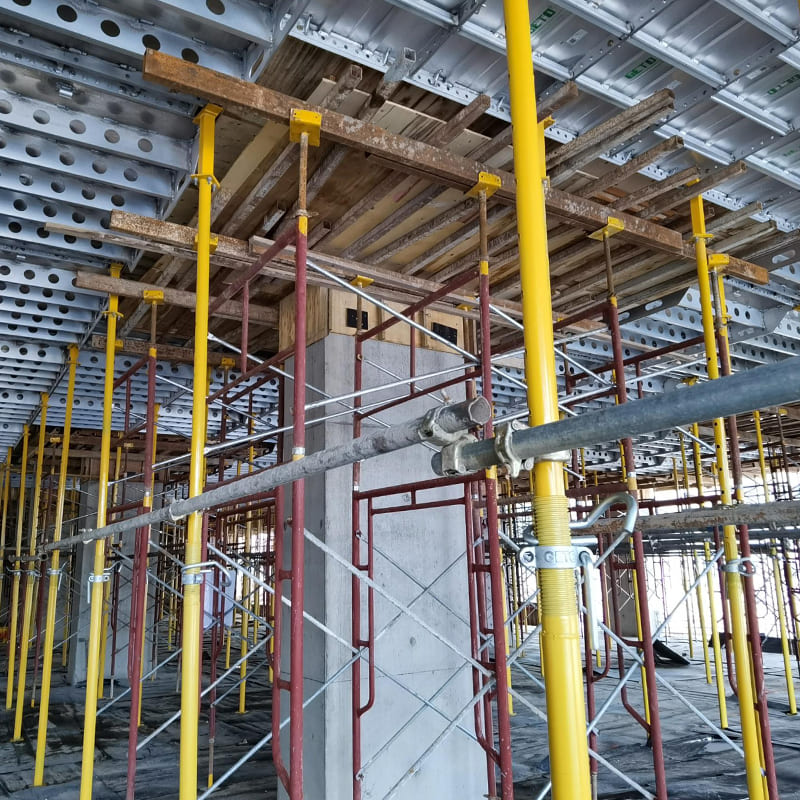

The Combination of Quick-Deck System with Timber Formwork

140x140

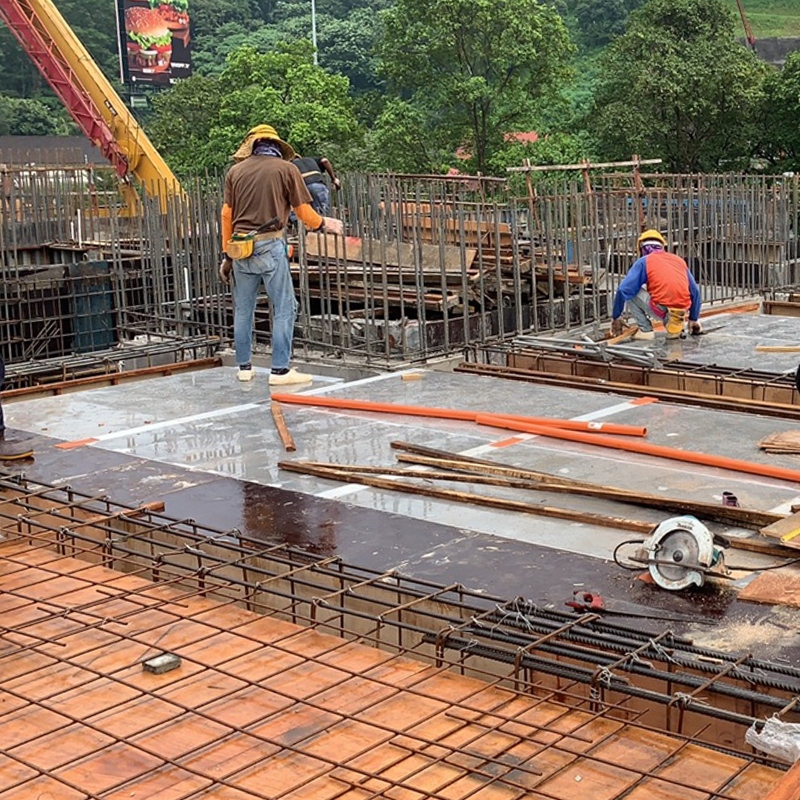

The Combination with PC Components



Advantages



  • Fast Construction: All components are light enough to assemble & dismantle by labour without heavy cranes. The  1.2m x 1.8m 36.77kg lightweight aluminium deck panels are easy and safe to erect using a minimum of only two workers by swiveling the panel upwards from below and locking it into our quick-release prop heads. Also, the standard  panels are allowed to transfer by small handcart  on site which is convenient for site construction.
  • Easy and Compatible: GETO Quick-deck Formwork System are allowed and easy to compatible with other aluminium formwork system, timber formwork system and precast concrete components. As quick-deck formwork panels are standard sizes and  not  specifically designed for one project, they are able to be re-used repeatedly on new projects without additional design costs.
  • Quick-release Prop Head: The special prop heads and props can be separated. And the props can be used in    tradition aluminium formwork system. The specially designed quick release prop head allows the panels to drop from the formed surface with- out disturbing the prop. The newly developed 2-stage lowering function of the quick release prop  head  prevents  panels  from  accidentally falling during dismantling and speeds  up the formwork dismantling process.
  • High Quality: The concrete surface by aluminium panel will be better than other formwork.

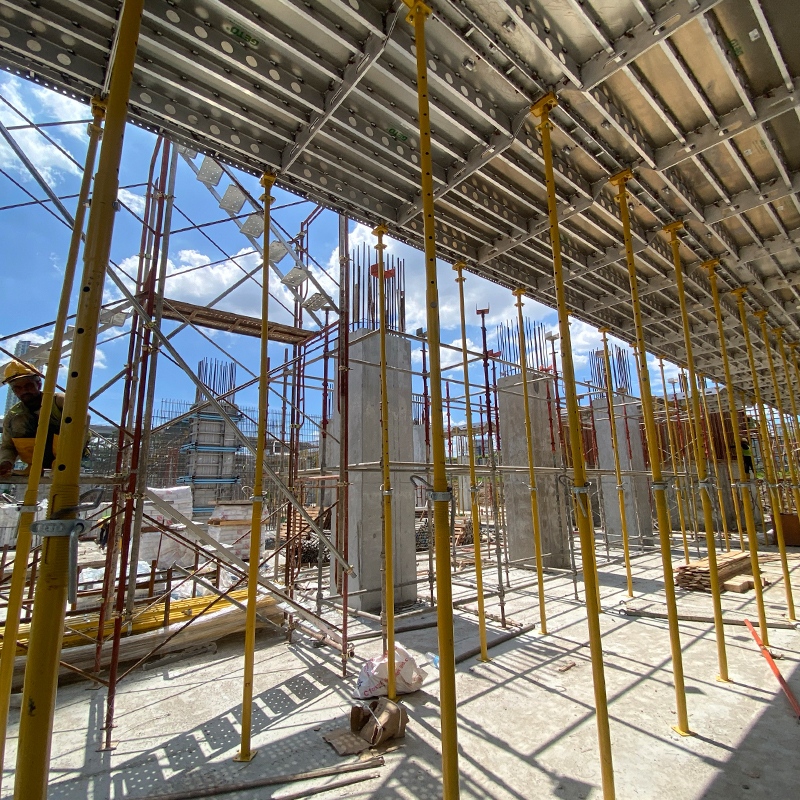

Application: Beam-less and large-area deck structures, such as car porches and podiums.
