Formwork Systems

Steel-Framed Timber Formwork

Advantages

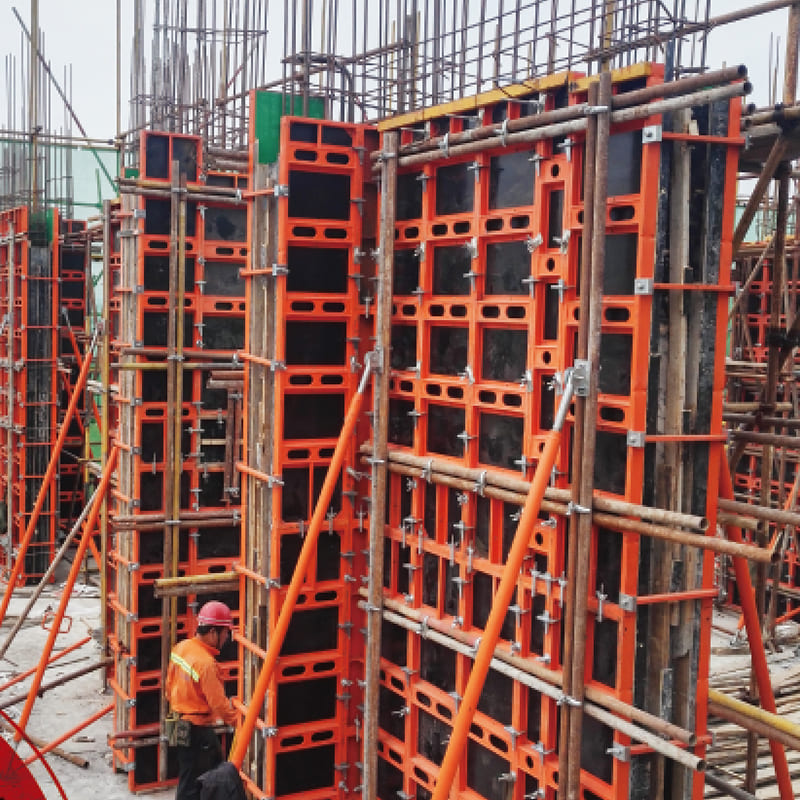

GETO-64 Heavy-Duty Formwork System



  • Faster work efficiency: The steel-framed formwork has high overall rigidity, so it can have a larger spacing between screws, reducing the number of screws, reducing labor costs, and saving assembly time.
  • Quick Assembly and Disassembly: Using a small number of panel specifications, it can be placed vertically or horizontally, connected quickly with fast fixtures, and can be quickly assembled into large-area panels of any size with just one hammer for connection and disassembly operations.
  • Seamless Connection and Efficient Hoisting.
  • Modular Design: Modular design size, perfect adaptation to any wall surface, easy to plan packaging and transportation, and the molded surface has a neat seam shape.
  • Durable and Low-Maintenance Panels: The panels are covered with a plastic coating on the surface of waterproof plywood, and after a small amount of mold release agent is used, the surface of the panel basically does not need to be cleaned after demolding.
  • High Load Capacity: Can bear a maximum concrete side pressure: 60 kN/m², can be adapted to steel formwork, wood formwork system, can be used for power plants and other curved surface concrete structures.
  • Thinner panel thickness, more suitable for structures with narrow internal spaces.

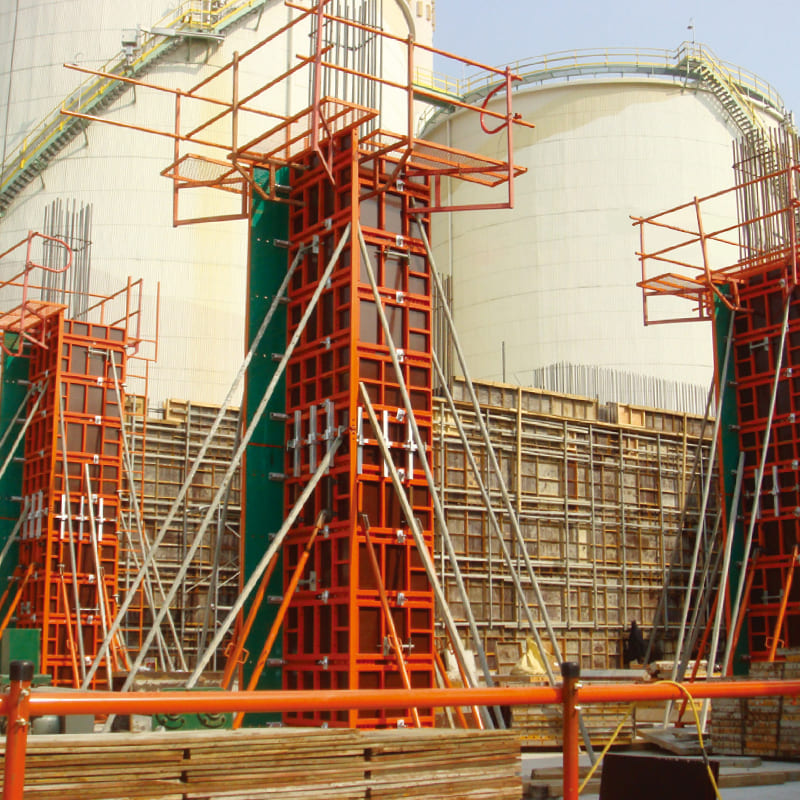

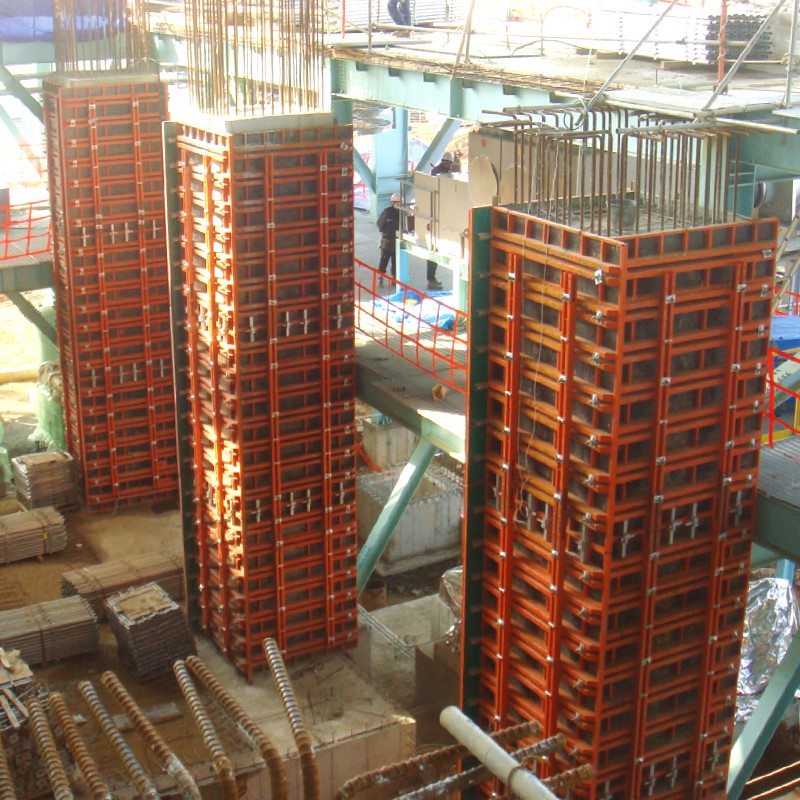

  • Economical and Adaptable Column Formwork: It can form columns of different sizes through adjustment holes with a spacing of 50mm, require no more materials. By adding caster accessories, the column formwork can be pushed and transferred on the floor, saving tower crane time.



GETO-64 Lightweight Formwork System



  • High Efficiency: Simple assembly tasks, achieving an area of over 40㎡ per person per day.
  • High Quality: Precise formwork design and production reduce worker error and enhance construction quality.
  • Low Cost: Special panel can be reused over 50 times, steel frame usable for more than 5 years, resulting in low amortization costs.
  • Safety: Systematic design ensures stability and reliability.
  • Environmentally Friendly: Reduces wood consumption and construction waste.



140x140
140x140
140x140



140x140
140x140

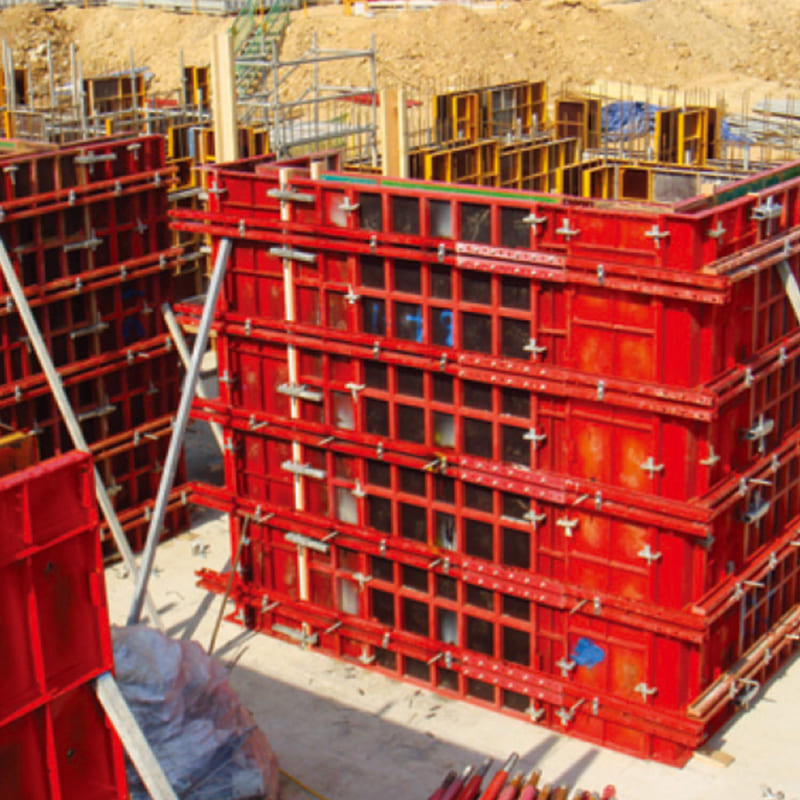

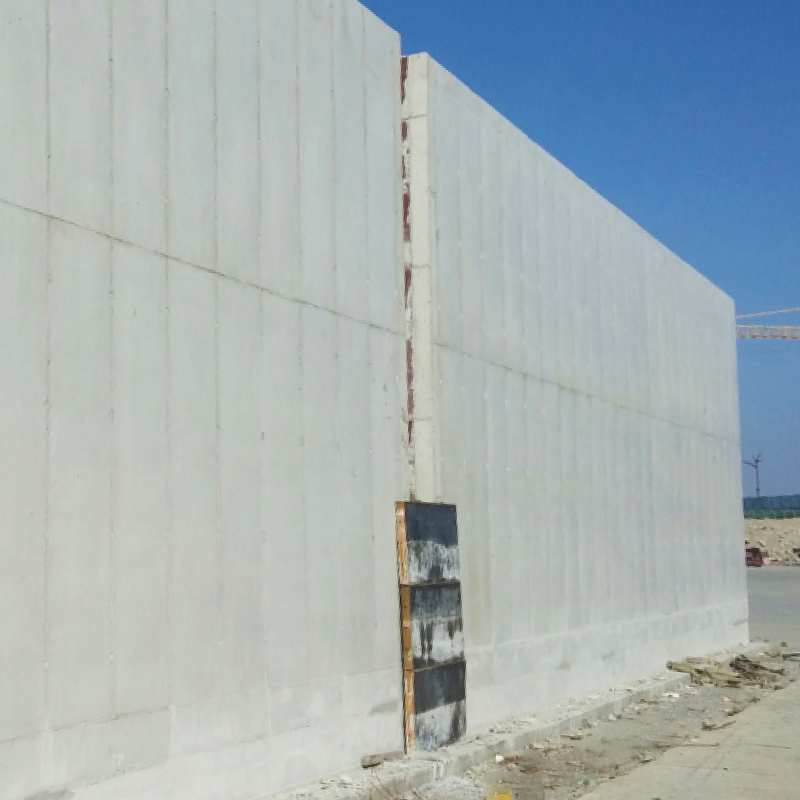

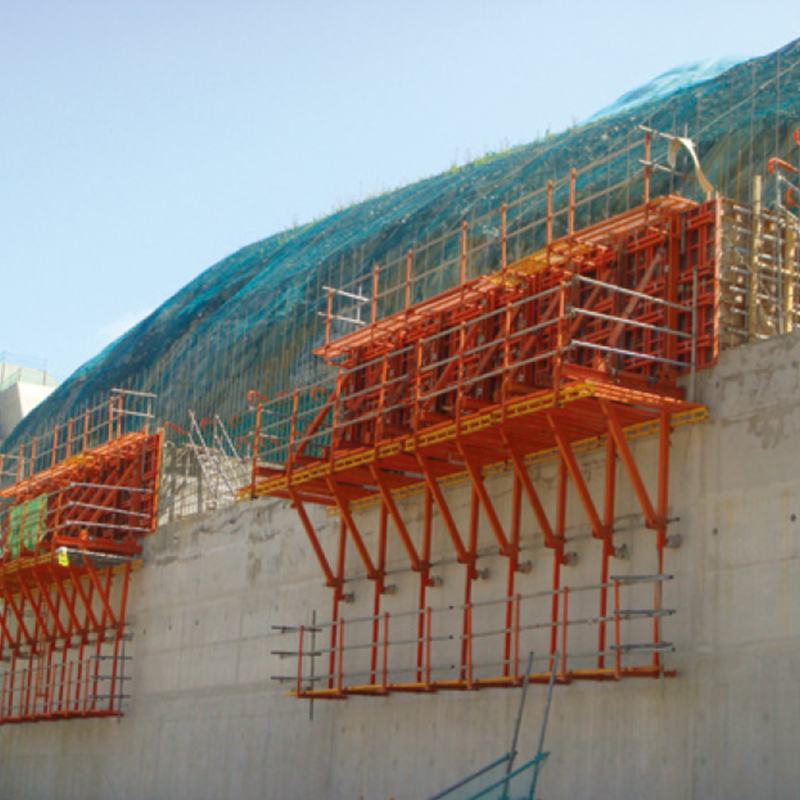

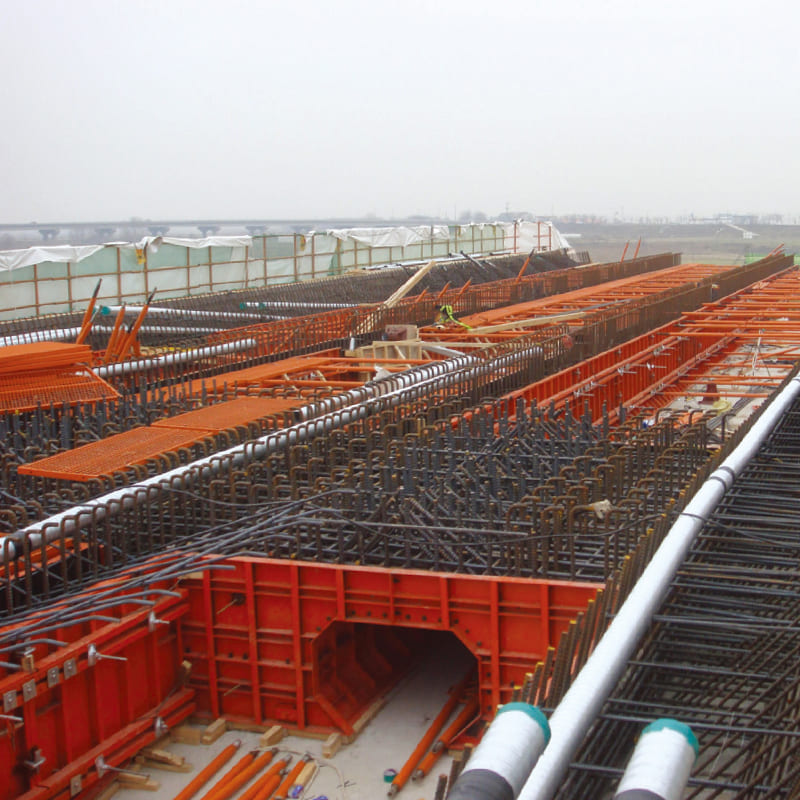

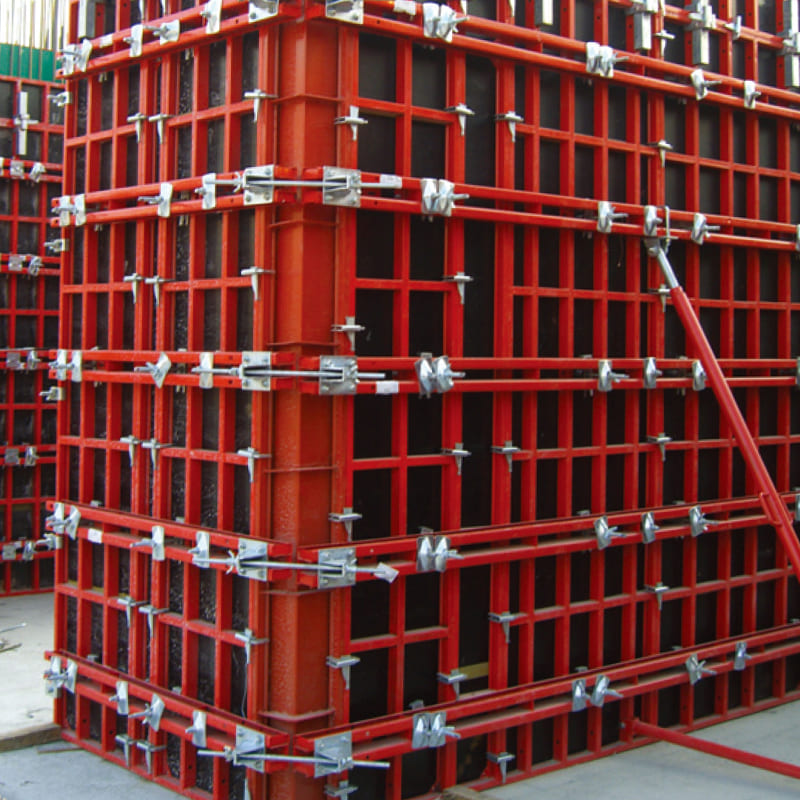

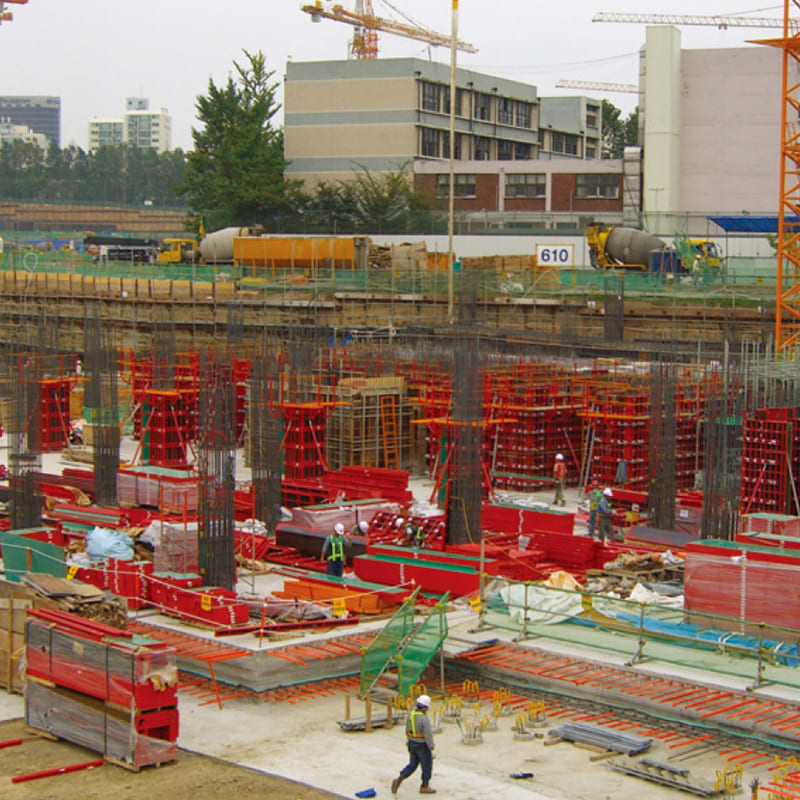

GETO-64 Heavy-Duty Formwork System

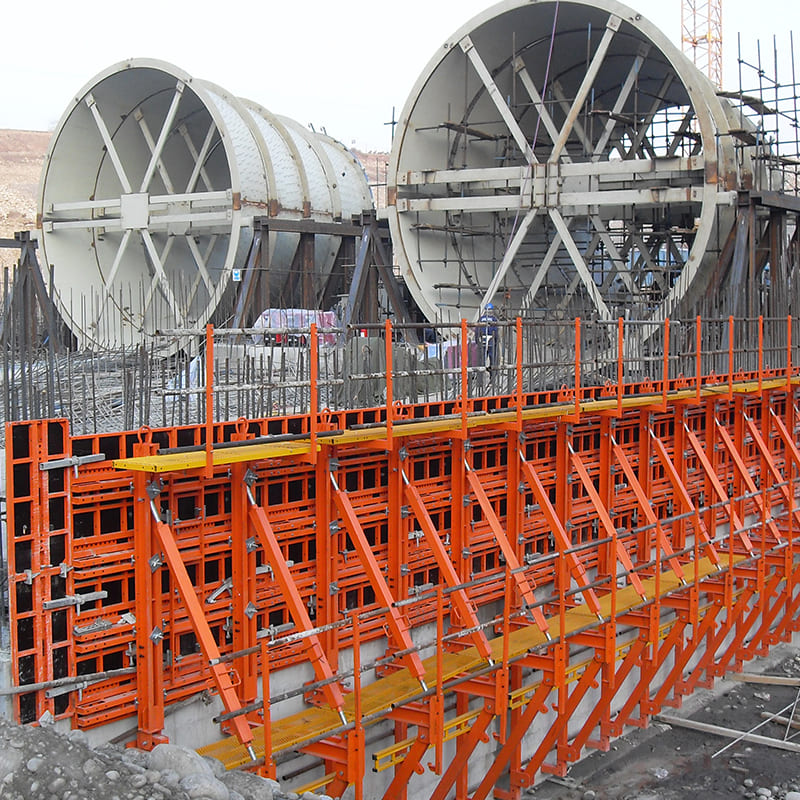

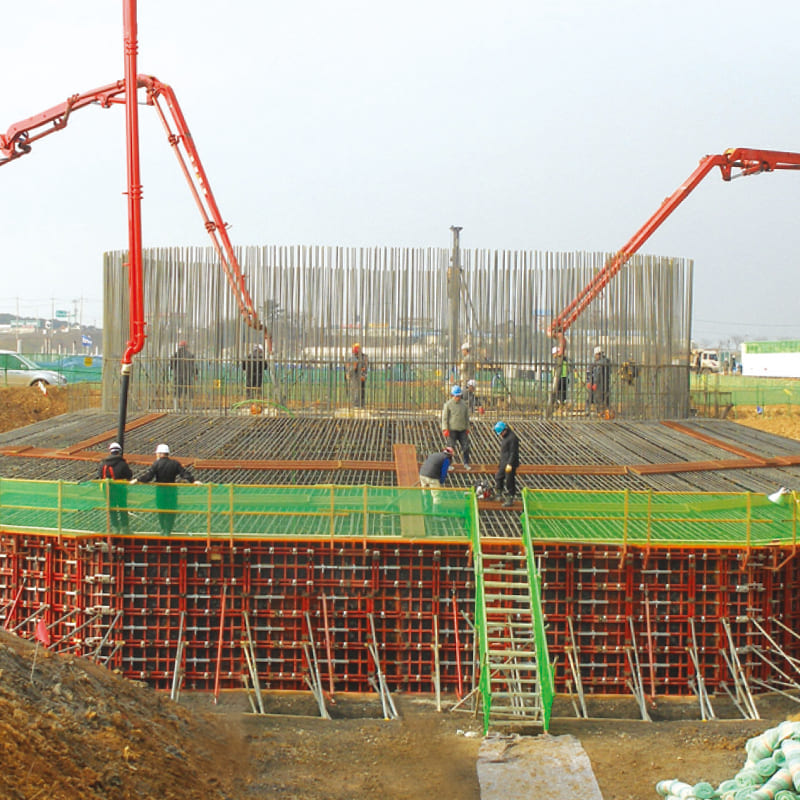

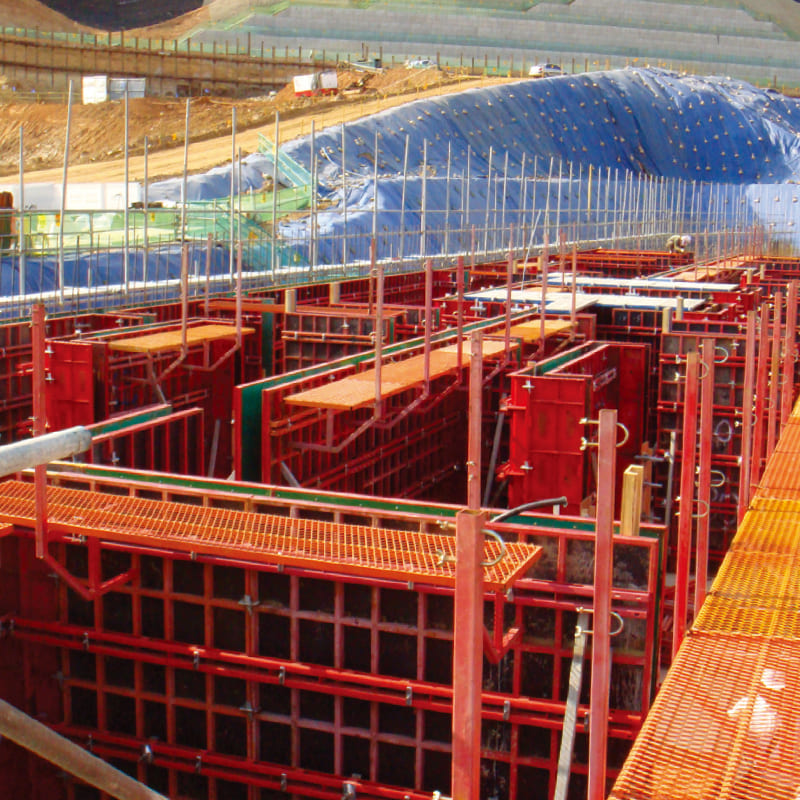

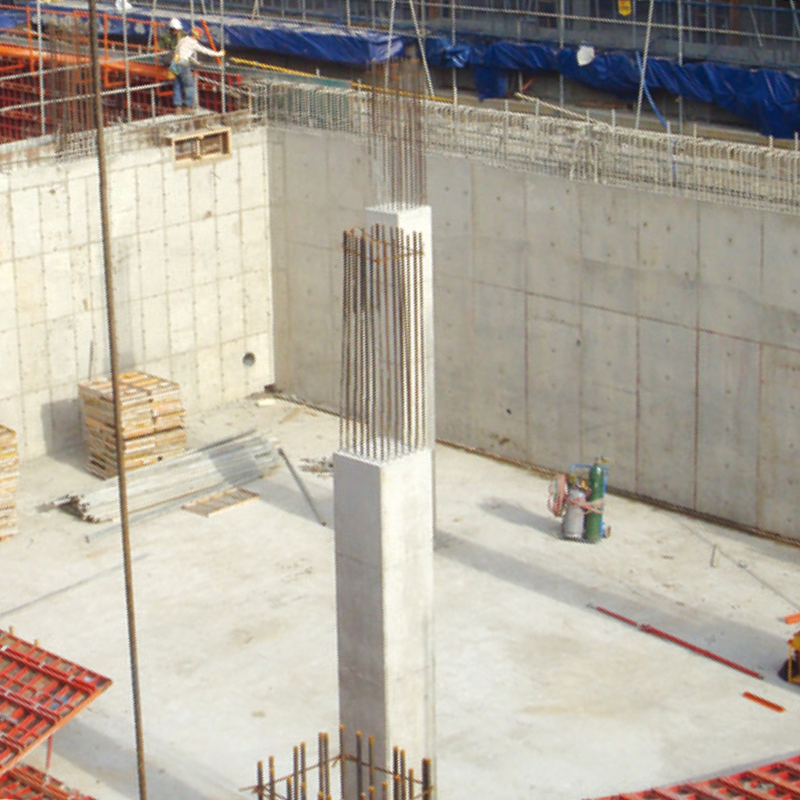

Application: Suitable for large concrete structures, such as power plants, cooling tower docks, industrial plants, etc.



140x140
140x140
140x140



140x140
140x140
140x140



140x140
140x140





GETO-64 Lightweight Formwork System

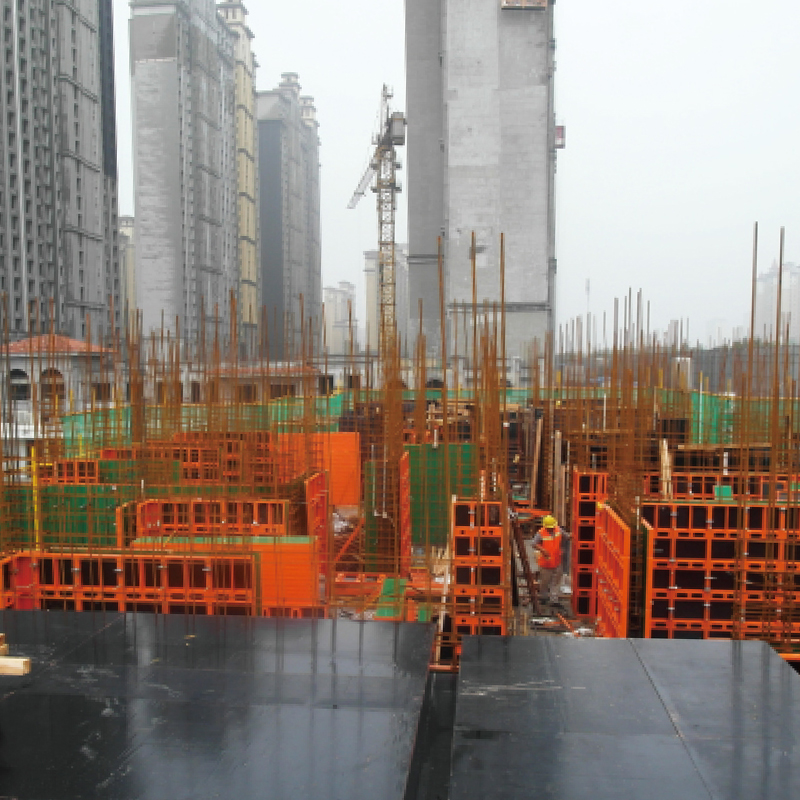

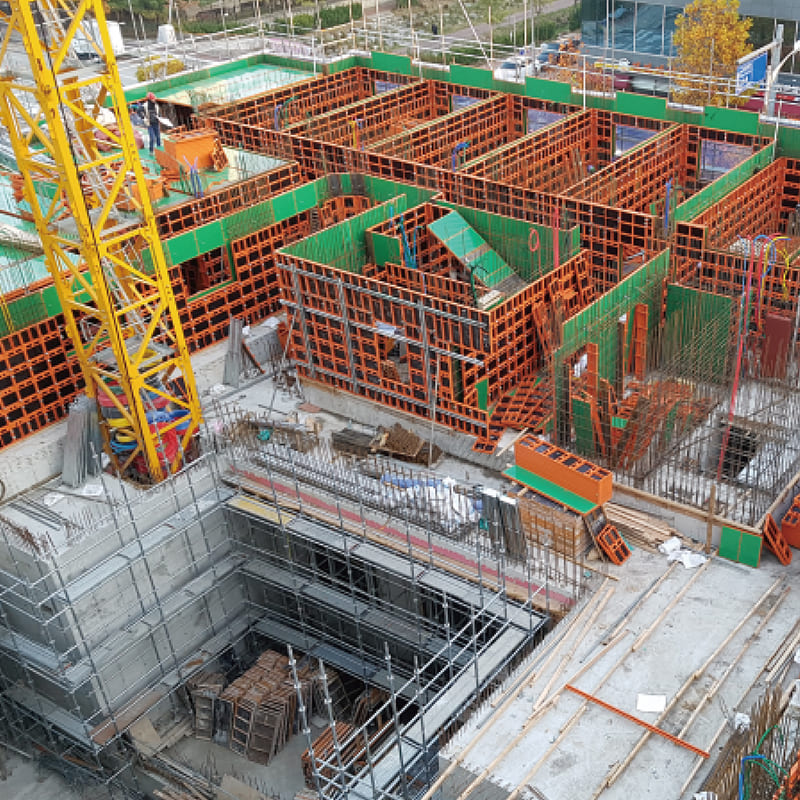

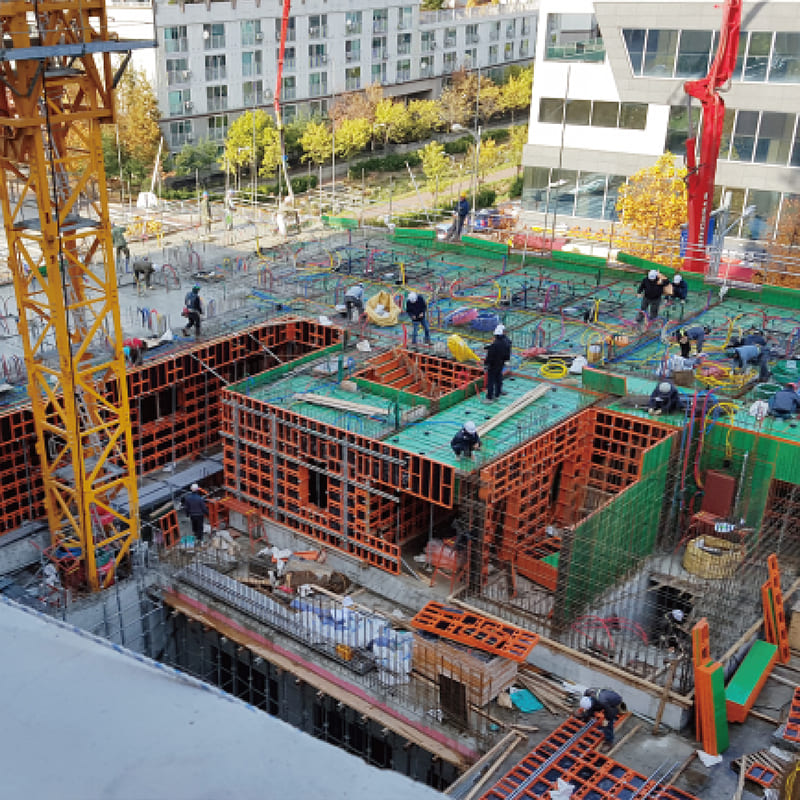

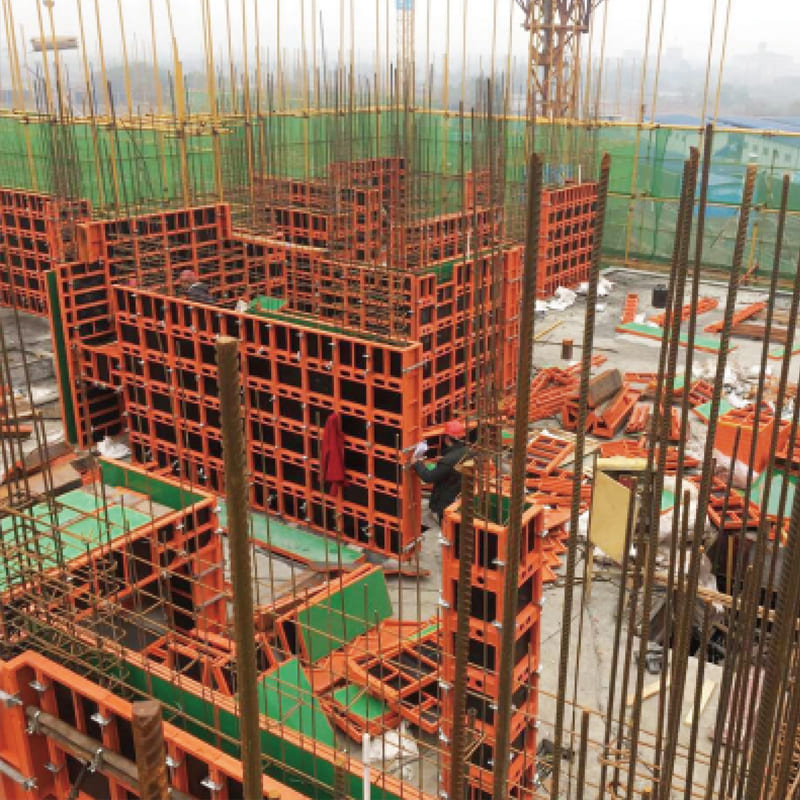

Application: Lightweight formwork suitable for one-piece pouring in high-rise buildings.

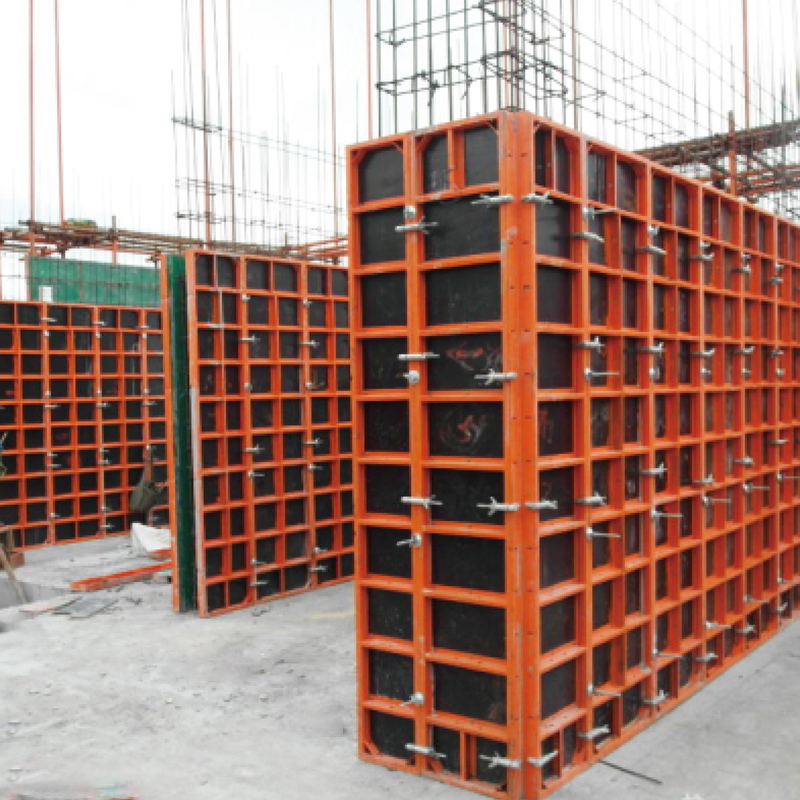

External Wall Formwork: Door and window openings can be formed in one pour.

Staircase Formwork: Integral assembly, one time forming.

Deck Formwork: Independent early removal support system.

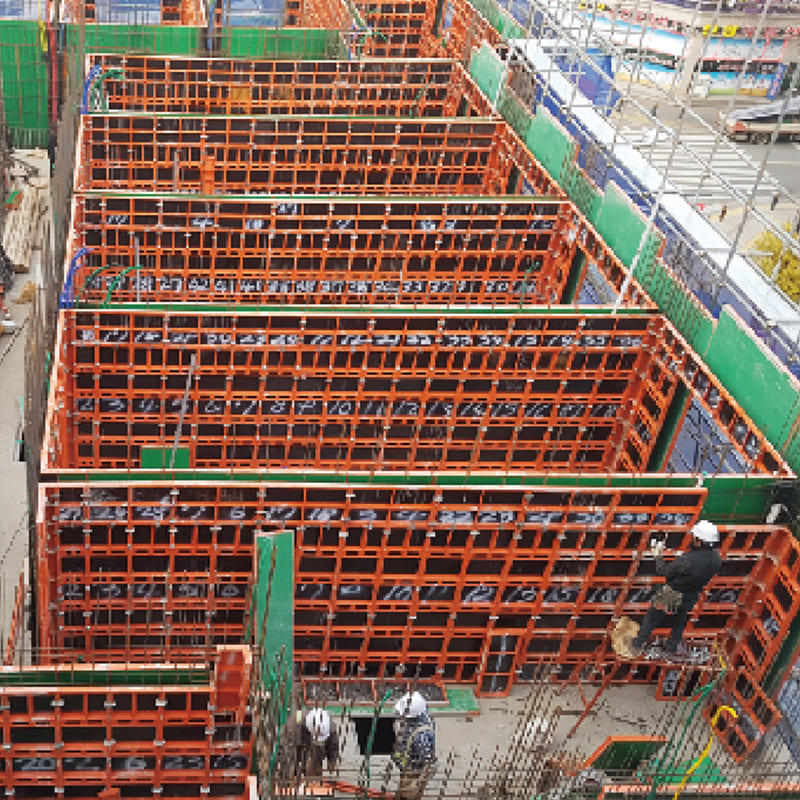

Internal Wall Formwork: Lightweight design.



140x140
140x140
140x140



140x140
140x140
140x140



140x140
