Formwork Systems

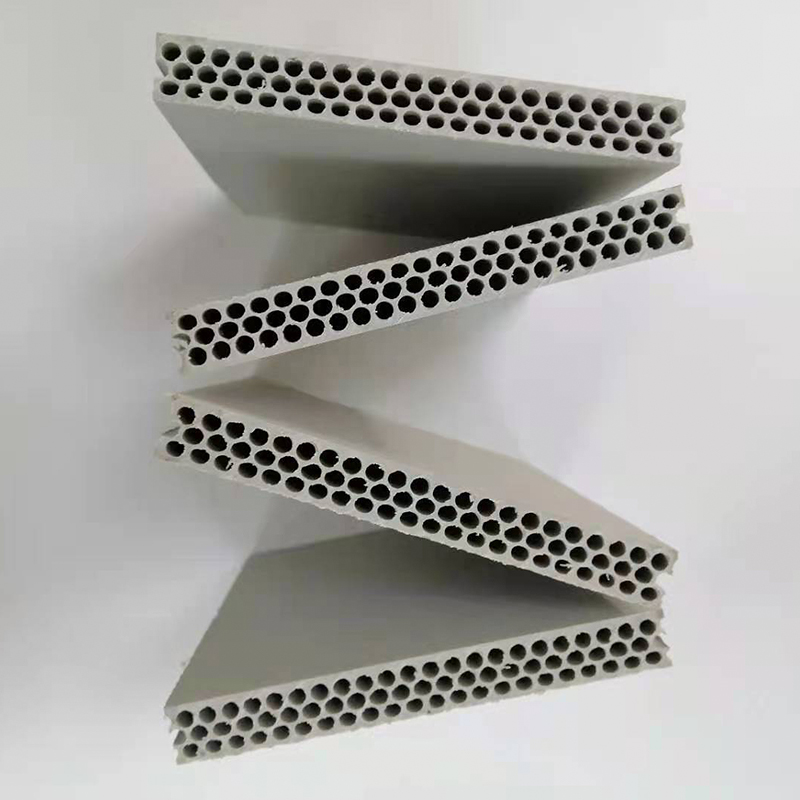

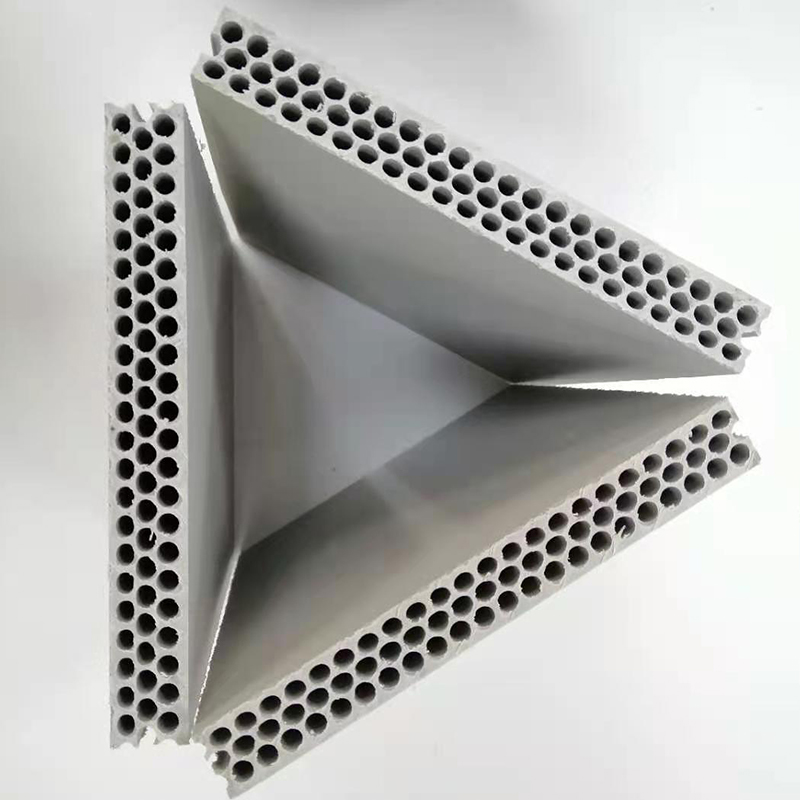

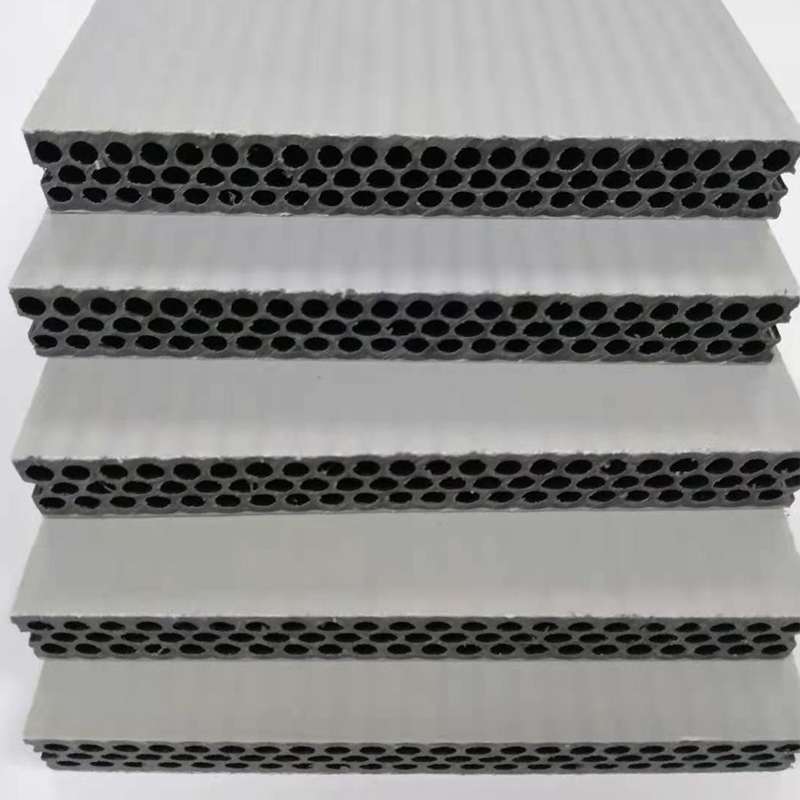

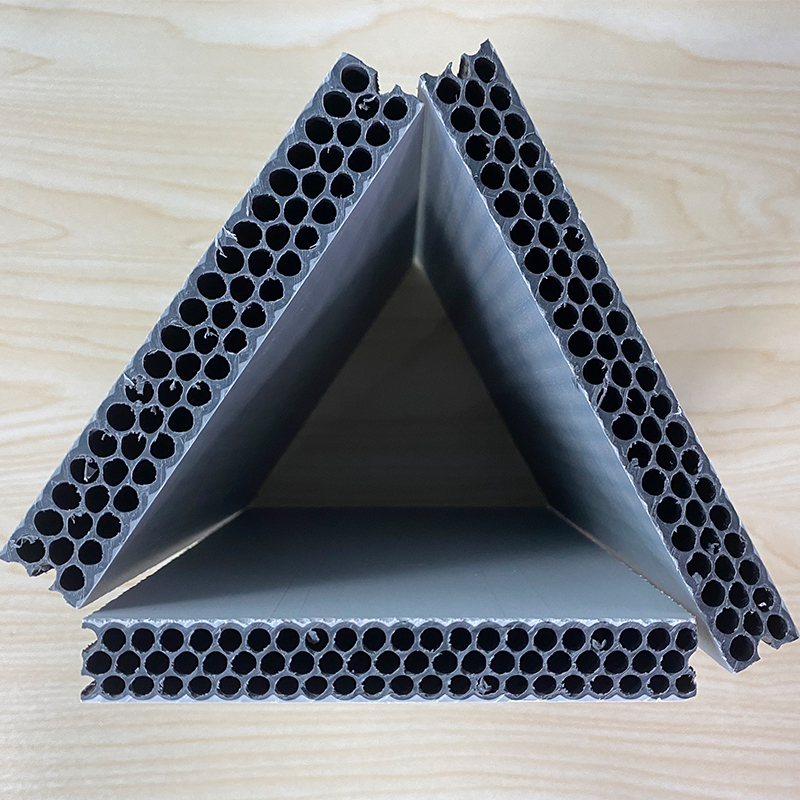

Plastic Formwork

The new hollow plastic formwork adopts polypropylene resin as the base material, with high strength and small deformation, suitable for use under various conditions.

Advantages



1. Environmental protection: It can be reused without waste discharge, saving wood resources and cost.

2. Cost effective: High turnover times (more than 50 times), reducing the average cost; Cost- effective, lower cost compared with traditional plywood.

3. Sturdy and durable: high strength, not easy to be broken, long service life.

4. Efficient construction: Easy to use, can be sawed, nailed, drilled, and cut; Good compatibility with other materials (such as wood, aluminium, etc.); No release agent is required, saving time and labour.

5. High Temperature Resistance: The melting point of polypropylene can be as high as 167° C. Our PP plastic formwork is made of polypropylene,  and it can withstand temperatures from -10° C to +80° C.



Specifcation



Specification (mm*mm)

Thickness (mm)

Weight (kg)

915*1830

12

12±0.5

14

14±0.5

15

15±0.5

1220*2440

12

19±1

15

25±1

18

29±1

20

31±1

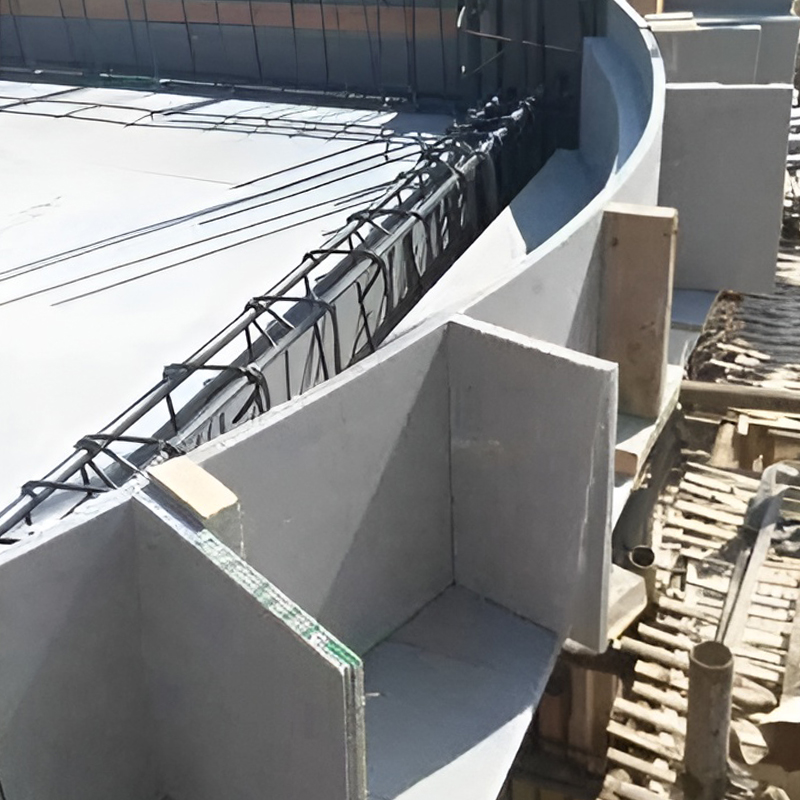

Application:Plastic formwork is applied to civil building, pipe corridor, highway, canal, bridge, tunnel and other projects.
