H-Frame Scaffolding

H-Frame Scaffolding is a kind of scaffolding, which is widely used in buildings, halls, bridges, viaducts, tunnels, etc., or as the main support of table formwork.

Advantages



It can also be used as internal and external grid scaffolding of high-rise buildings.

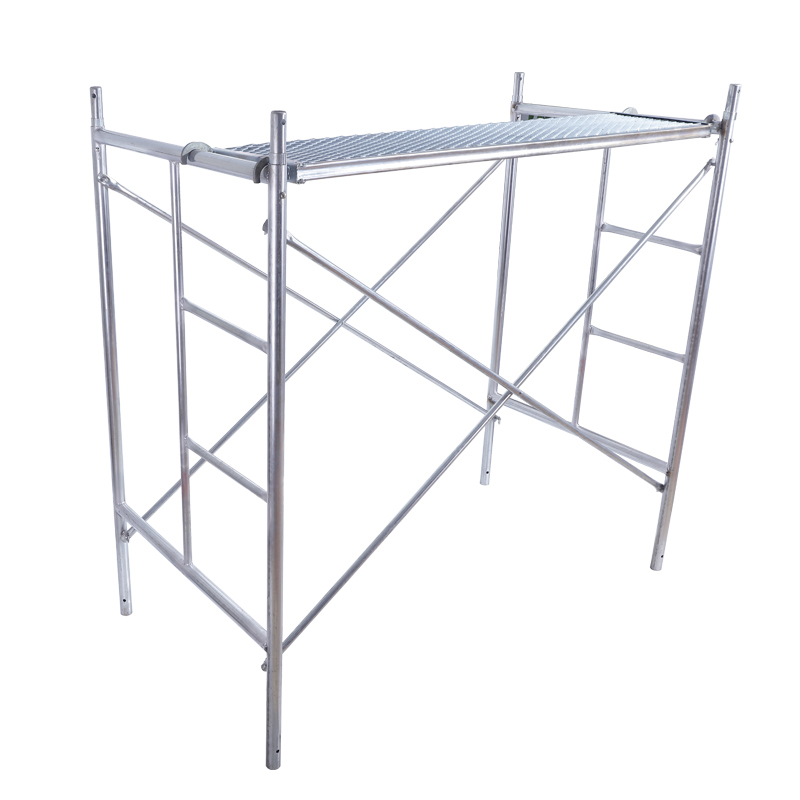

This kind of scaffold is mainly composed of main frame, transverse frame, cross brace, scaffold board and adjustable base.

Surface: Pre-galvanized, hot dipped galvanized, painted, powder coated

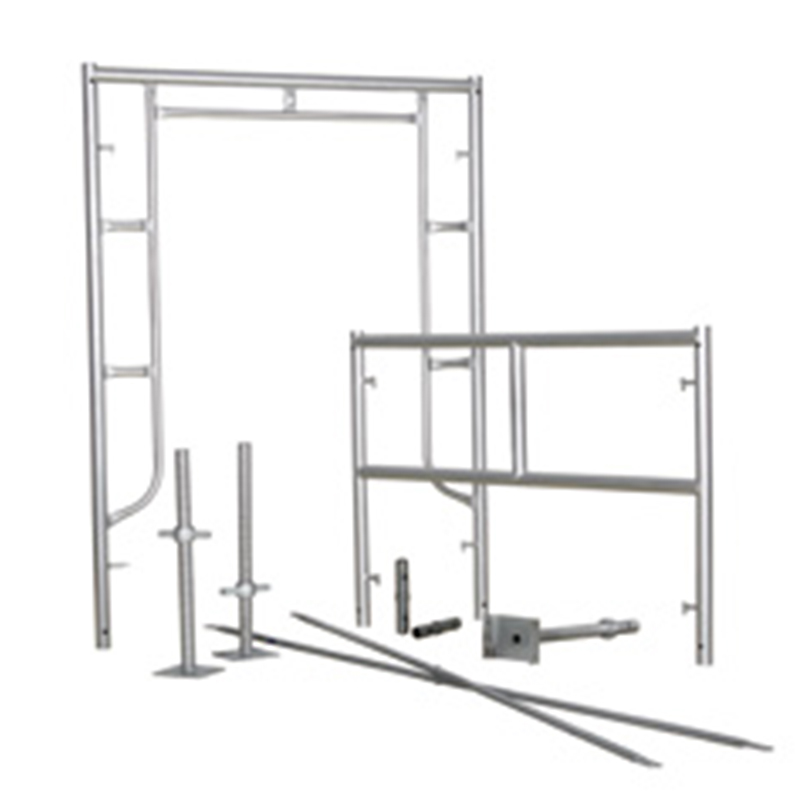

Main Components: Frame, cross brace, joint pin, catwalk, base jack, U head jack and castor.



Specifcation



Width*Height

Outer Tube, Inner Tube

1219*1930mm

42*1.8mm, 25*1.5mm

1219*1700mm

42*2.2mm, 25*1.5mm

1219*914mm

42*2.2mm, 25*1.5mm

914*1930mm

42*2.0mm, 25*1.5mm

914*914mm

42*2.0mm, 25*1.5mm

42*1.8mm, 25*1.5mm



Width*Height

Outer Tube, Inner Tube

1219*1930mm

42*2.2mm, 25*1.5mm

1219*1700mm

42*2.0mm, 25*1.5mm

914*1700mm

42*1.8mm, 25*1.5mm

Application:Used in structural parts of buildings, such as structural frames, stair railings, roof supports, etc.
