Adjustable Aluminium Column Formwork System

The adjustable aluminium column formwork system uses the 63.5 system aluminium formwork (63.5mm edge profile) and is assembled into a self-supporting rectangular column through pre-drilled holes and special connectors. It adapts flexibly to different column sizes without additional hoop clamps or walers, improving efficiency and reducing labor costs. Available in full-height and extended-height types, the system offers high standardization, reusability, fast turnaround, excellent concrete finish, and eco-friendly benefits. It is suitable for independent rectangular columns and variable-section structures.

Adjustable Aluminium Column Formwork System

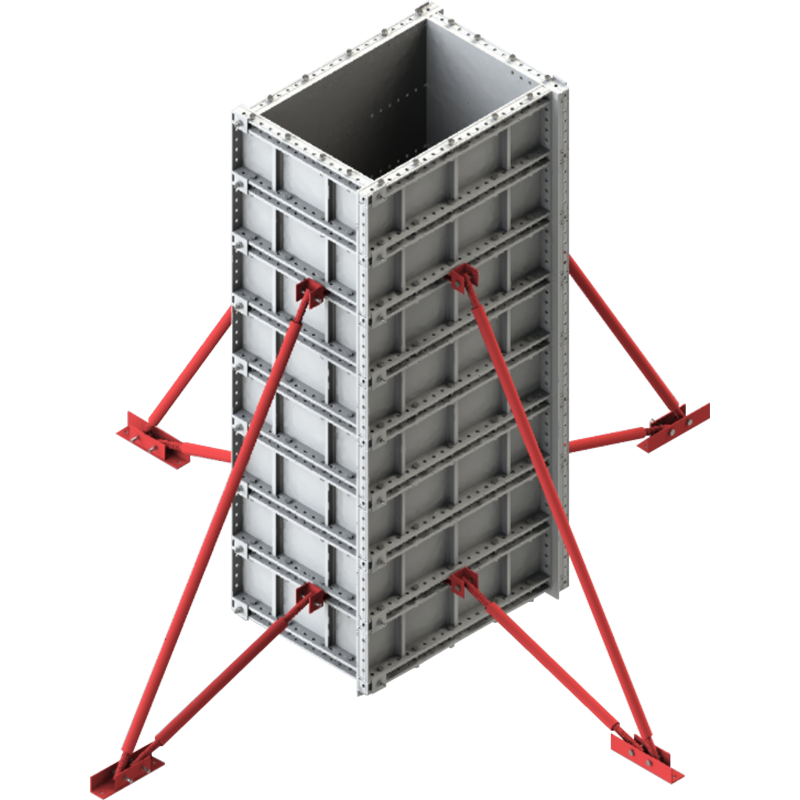

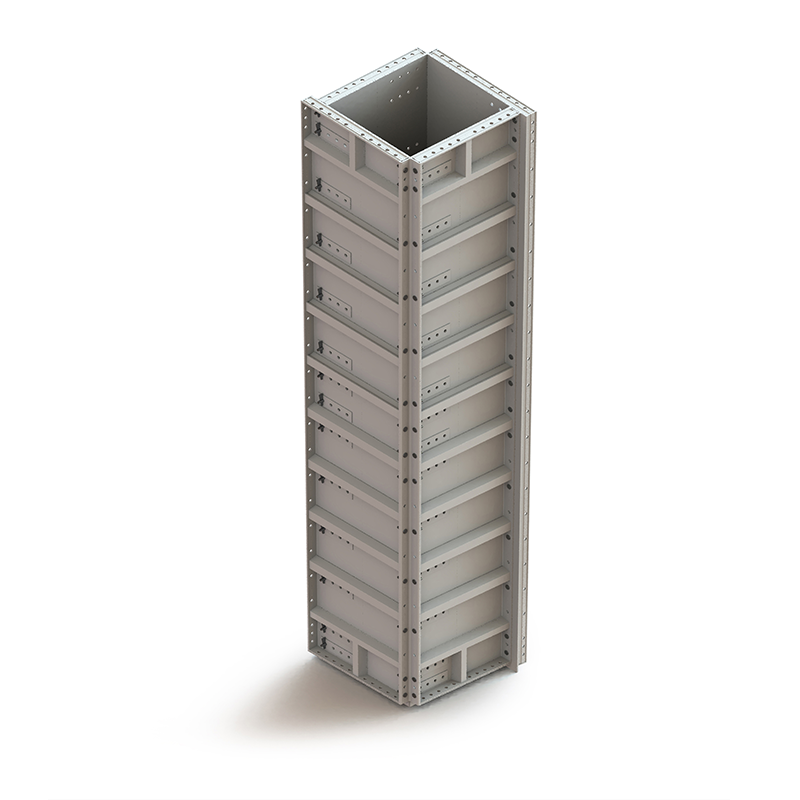

Full-Height Adjustable Aluminium Column Formwork



Tie-Rod System

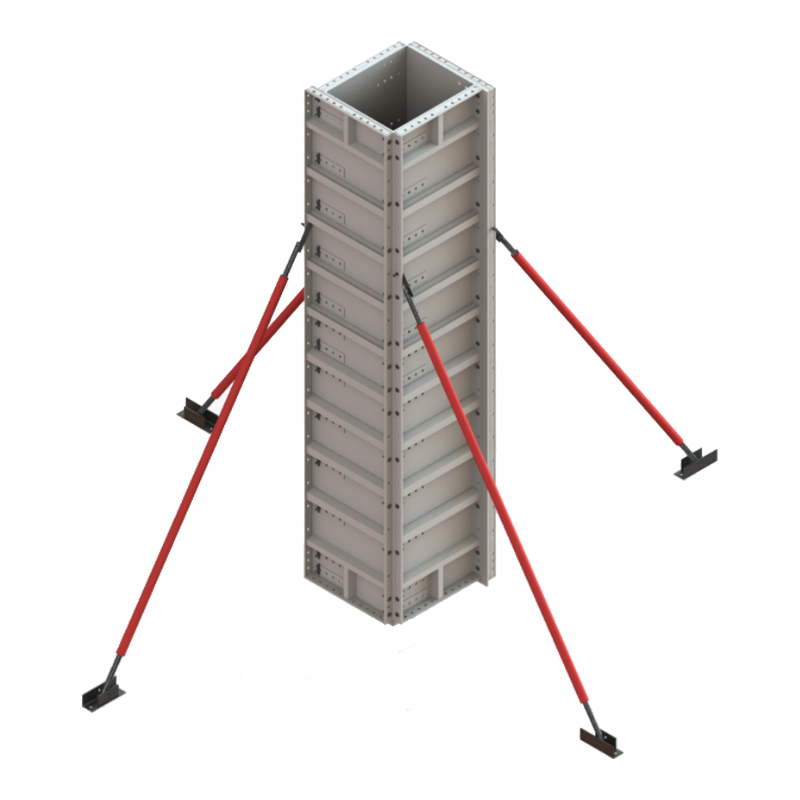

Extended-Height Adjustable Aluminium Column Formwork







Advantages



  • High Efficiency: For sections ≤ 600mm, no bracing is needed; just pinning, significantly speeding up installation.
  • Budget-Friendly: Adjustable to fit different column cross-section sizes, saving formwork materials and reducing costs.
  • Premium Quality: Full-height panels ensure fast installation, fewer seams, and excellent forming results.
  • Easy Mobility: Lightweight panels for easy manual transport, reducing transportation costs.

FAQ



What is an Adjustable Aluminium Column Formwork System?
An Adjustable Aluminium Column Formwork System is a reusable formwork solution designed for casting concrete columns with different dimensions. The system uses adjustable aluminium panels and supporting components to adapt to various column sizes, providing efficient and accurate concrete construction.
What construction problems can Adjustable Aluminium Column Formwork solve?
Adjustable Aluminium Column Formwork helps solve common challenges in concrete column construction, such as complicated installation processes, inconsistent column dimensions, high labor requirements, and low formwork flexibility. Its adjustable design allows contractors to handle different column sizes with fewer formwork modifications.
Where is Adjustable Aluminium Column Formwork System commonly used?
The system is widely used in residential buildings, commercial buildings, high-rise projects, industrial facilities, and other reinforced concrete construction projects. It is especially suitable for projects with multiple column sizes or repeated structural layouts.
Can Adjustable Aluminium Column Formwork improve concrete column quality?
Yes. A stable aluminium formwork structure helps maintain accurate column dimensions and alignment during concrete pouring. The precise panel connection reduces deformation risks and helps achieve smoother concrete surfaces.
